3,649LPH, 46Bar & Highly Accurate

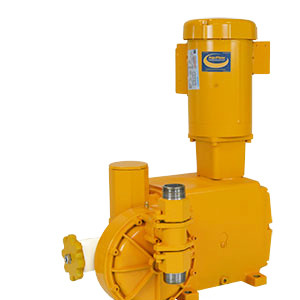

• 3,649LPH에 46Bar에 고용량 저압력 펌프의 컴팩트한 설계 중 하나로 AQUFLOW Series 3000 펌프는 신뢰성과 높은 내구성으로 대부분의 사용자를 만족시켜줍니다. 까다로운 액상에서 장시간 연속 작동하여도 내구성이 유지되며 안전한 작동이 가능합니다.
• 화학시설에서 가장 유해한 화학 물질 중 일부에 대한 내식성을 보장한다. 시리즈 3000의 구동 부품은 가장 스트레스를 많이 받는 조건에서 최소한의 마모를 보장하기 위해 윤활유 유압 오일으로 보호됩니다. 알루미늄 기어 하우징과 압력 챔버 및 액체 엔드를 결합한 모듈식 설계 또한 펌프에는 과도한 압력과 최종적인 파손으로부터 보호하기 위한 Internal Reilfe Valve가 있다.
• Series 3000은 물과 폐수, 석유와 가스, 화학 처리를 포함한 많은 산업에 대한 적용이 가능합니다.
Feature | Spec |
Flow Capacity | Up to 3,649 LPH (Duplex) |
Pressure | Up to 46 Bar |
Design | Modular |
Metering Accuracy | +/- 1% |
Capacity Controls | Manual/Auto |
Safety | Built-in internal relief valve |
Availability | Duplex or Double Flow Capacity |
Liquid Handling | Able to handle difficult liquids like slurries, off-gasing, high viscosities |
• Specification
Specification | Measurement |
Flow Capacity Adjustment | 0–100% while the pump is running or stopped |
Turndown Ratio | Stroke Length 10:1 |
Metering Accuracy | Steady State: ± 1% |
Max. Process Fluid Temp. | Custom engineered metallic liquid end: 500°F (260C) |
Plunger Stroke Length | 2.75" |
Hydraulic Oil Capacity | - |
Displacement Per Stroke (by plunger size) | 1" 2.3561 cu. in. (38.61 ml) |
Liquid End Material Options | 316 SS, Alloy 20, Hastelloy C, PVC, PVDF and PTFE |
• Performance Table
Model No. | Capacity | Pressure | Speed | Plunger | Connection | Performance |
CNIT 0829-0X018 | 15.9 (60.2) | 700 | 29 | 1" | 1/2" | Curves |
CNIT 0858-0X018 | 31.9 (120.7) | 700 | 58 | 1" | 1/2" | Curves |
CNIT 0888-0X018 | 48.4 (183.2) | 700 | 88 | 1" | 1/2" | Curves |
CNIT 0812-0X018 | 54.4 (205.9) | 700 | 117 | 1" | 1/2" | Curves |
CNIT 0814-0X018 | 77.1 (291.8) | 700 | 140 | 1" | 1/2" | Curves |
CNIT 1029-0X018 | 25.0 (94.6) | 405 | 29 | 1-1/4" | 1/2" | Curves |
CNIT 1058-0X018 | 50.0 (189.3) | 405 | 58 | 1-1/4" | 1/2" | Curves |
CNIT 1088-0X018 | 75.7 (286.5) | 405 | 88 | 1-1/4" | 1/2" | Curves |
CNIT 1012-0X018 | 100 (378.5) | 405 | 117 | 1-1/4" | 1/2" | Curves |
CNIT 1014-0X018 | 120 (454.2) | 405 | 140 | 1-1/4" | 1/2" | Curves |
CNIT 1229-0X018 | 35.9 (135.9) | 265 | 29 | 1-1/2" | 1/2" | Curves |
CNIT 1258-0X018 | 71.8 (271.8) | 265 | 58 | 1-1/2" | 1/2" | Curves |
CNIT 1288-0X018 | 109 (412.6) | 265 | 88 | 1-1/2" | 1/2" | Curves |
CNIT 1212-0X018 | 145 (548.9) | 265 | 117 | 1-1/2" | 1/2" | Curves |
CNIT 1214-0X01A | 173 (654.9) | 265 | 140 | 1-1/2" | 1/2" | Curves |
CNIT 1429-0X018 | 48.9 (185.1) | 180 | 29 | 1-3/4" | 1/2" | Curves |
CNIT 1458-0X018 | 97.8 (370.2) | 180 | 58 | 1-3/4" | 1/2" | Curves |
CNIT 1488-0X018 | 148 (560.2) | 180 | 88 | 1-3/4" | 1/2" | Curves |
CNIT 1412-0X01A | 197 (745.7) | 180 | 117 | 1-3/4" | 1/2" | Curves |
CNIT 1414-0X01A | 236 (893.4) | 180 | 140 | 1-3/4" | 1/2" | Curves |
CNIT 1629-0X018 | 63.9 (241.9) | 130 | 29 | 2" | 1-1/2" | Curves |
CNIT 1658-0X018 | 128 (484.5) | 130 | 58 | 2" | 1-1/2" | Curves |
CNIT 1688-0X01A | 194 (724.4) | 130 | 88 | 2" | 1-1/2" | Curves |
CNIT 1612-0X01B | 258 (976.6) | 130 | 117 | 2" | 1-1/2" | Curves |
CNIT 1614-0X01B | 308 (1,165.9) | 130 | 140 | 2" | 1-1/2" | Curves |
CNIT 1829-0X018 | 80.8 (305.9) | 95 | 29 | 2-1/4" | 1-1/2" | Curves |
CNIT 1858-0X018 | 161 (609.5) | 95 | 58 | 2-1/4" | 1-1/2" | Curves |
CNIT 1888-0X01A | 245 (927.4) | 95 | 88 | 2-1/4" | 1-1/2" | Curves |
CNIT 1812-0X01B | 326 (1,234.0) | 95 | 117 | 2-1/4" | 1-1/2" | Curves |
CNIT 1814-0X01C | 90 (1,476.3) | 95 | 140 | 2-1/4" | 1-1/2" | Curves |
CNIT 2029-0X018 | 100 (378.5) | 75 | 29 | 2-1/2" | 1-1/2" | Curves |
CNIT 2058-0X01A | 200 (757.1) | 75 | 58 | 2-1/2" | 1-1/2" | Curves |
CNIT 2088-0X01B | 300 (1,135.6) | 75 | 88 | 2-1/2" | 1-1/2" | Curves |
CNIT 2012-0X01C | 400 (1,514.2) | 75 | 117 | 2-1/2" | 1-1/2" | Curves |
CNIT 2014-0X01C | 482 (1,824.6) | 75 | 140 | 2-1/2" | 1-1/2" | Curves |
• S3000 Options
Capacity Control Options
- Dual Axis with both stroke length and stroke speed adjustable.
Stroke Length Controls
- Manual: Standard on all pumps.
- Electric: Electric stepper motor. Capable of 4-20mA input.
- Pneumatic: Runs on 30 PSI air for hazardous environment.
• Liquid Handling Options
Tubular
- For liquids with suspended solids/slurries that may clog. Good for high viscosity liquids also.
Degassing Valve
- Some challenging liquids can cause air locking due to off gassing. Our pump head with degassing valve ensures accurate and consistent pumping by letting our gas bubbles from the pump head.
Double Ball Check Valve
- An added measure of assurance that you have the position valve shut off.
Tungsten Carbide Valve Balls
- For abrasive liquids
• Leak Detection Options
Leak Detection
- There are two types of leak detection options available with AquFlow pumps.
Conductive
- Conductivity probe between 2 diaphragms to sense any break or rupture.
Vacuum
- Uses a vacuum switch between 2 diaphragms to sense any rupture or failure.
• Other Options
Liquid Connections
- NPT / FLANGE / TRICLAMP
Motor Options
- Enclosure: TEFC, TENV, Explosion Proof, Washdown
- Power Supply: ACV 115V, 230V, 380V, 460V, DC-12, 24, 90, 180, Single Phase, 3-Phase
