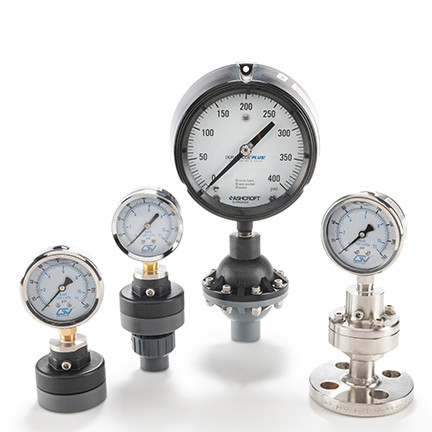

Gauge & Instrument Guards
Protect pumps, systems or tanks from over pressurization |
Maximum Temperature ------------------------------------------------ PVDF: 300° F (150° C) Pressure Range Options ----------------------------------------------- 0 - 60 psi to 0 - 200 psi |
Griffco diaphragm gauge guards and instrument isolators are designed to enhance the performance of chemical feed systems. The addition of gauges to the system ensure optimal pressures are maintained. Diaphragm isolators protect instruments against chemical attack. Also known as diaphragm isolators.
Instrument Gauge Guards Features |
• Molded Noryl Top
• 316 SS Gauge Connection
• Calibration Screw for Zeroing
• Available with or without Gauge
Griffco Benefits |
• Reliable Instrument Protection
• Will perform in any position
• Multiple Diaphragm Options
• No Metal Fasteners
Body | Top | Diaphragm |
• PVC | • Noryl | • Standard: Viton |
• CPVC |
| • Optional: PTFE, Hypalon, Kalrez |
• Polypropylene | O-Ring |
|
• PTFE | • Viton |
|
• PVDF |
|
|
• 316L SS |
|
|
Connections | Maximum Temperature |
• Types: NPT, BSPT, Socket, Union, Flange | • PVC: 140° F (60° C) |
• Sizes: 1/4", 3/8" and 1/2" | • CPVC & Polypropylene: 190° F (87° C) |
• Gauge Port Size: 1/4" | • PVDF: 300° F (150° C) |
Gauge Options | Pressure Range Options |
• No Gauge | • 0 - 160 psi (Standard) |
• Economy Gauge: Brass Case with Brass Connection | • 0 - 60 psi |
• Mid-Range Gauge: 304 SS Gauge Case with Brass Connection | • 0 - 100 psi |
• Premium Gauge: 304 SS Gauge Case with 316 SS Connection, Glycerin Filled | • 0 - 200 psi |
| website | catalog | manual | drawing |

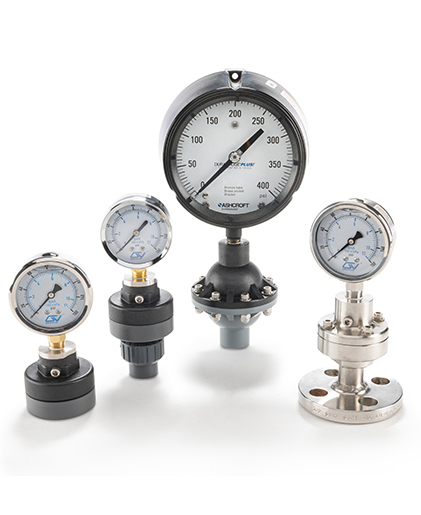

Gauge & Instrument Guards
