WEXH SERIES ATEX Heating Jackets With System Approval |
tmax = 200 °C |
Applications
· The WEXH… type explosion protected heating jackets can be used in gas and dust areas zone 1/2 (gas) and zone 21/22 (dust) and are therefore universally applicable for diverse sectors and industrial applications (explosion groups IIC hydrogen and IIIC conductive dusts)
with necessary process-related heating. not suitable for zones 0 and 20.

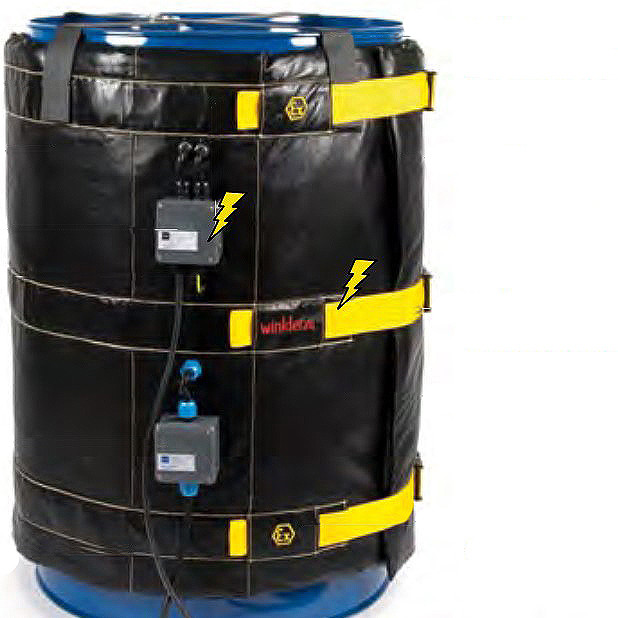

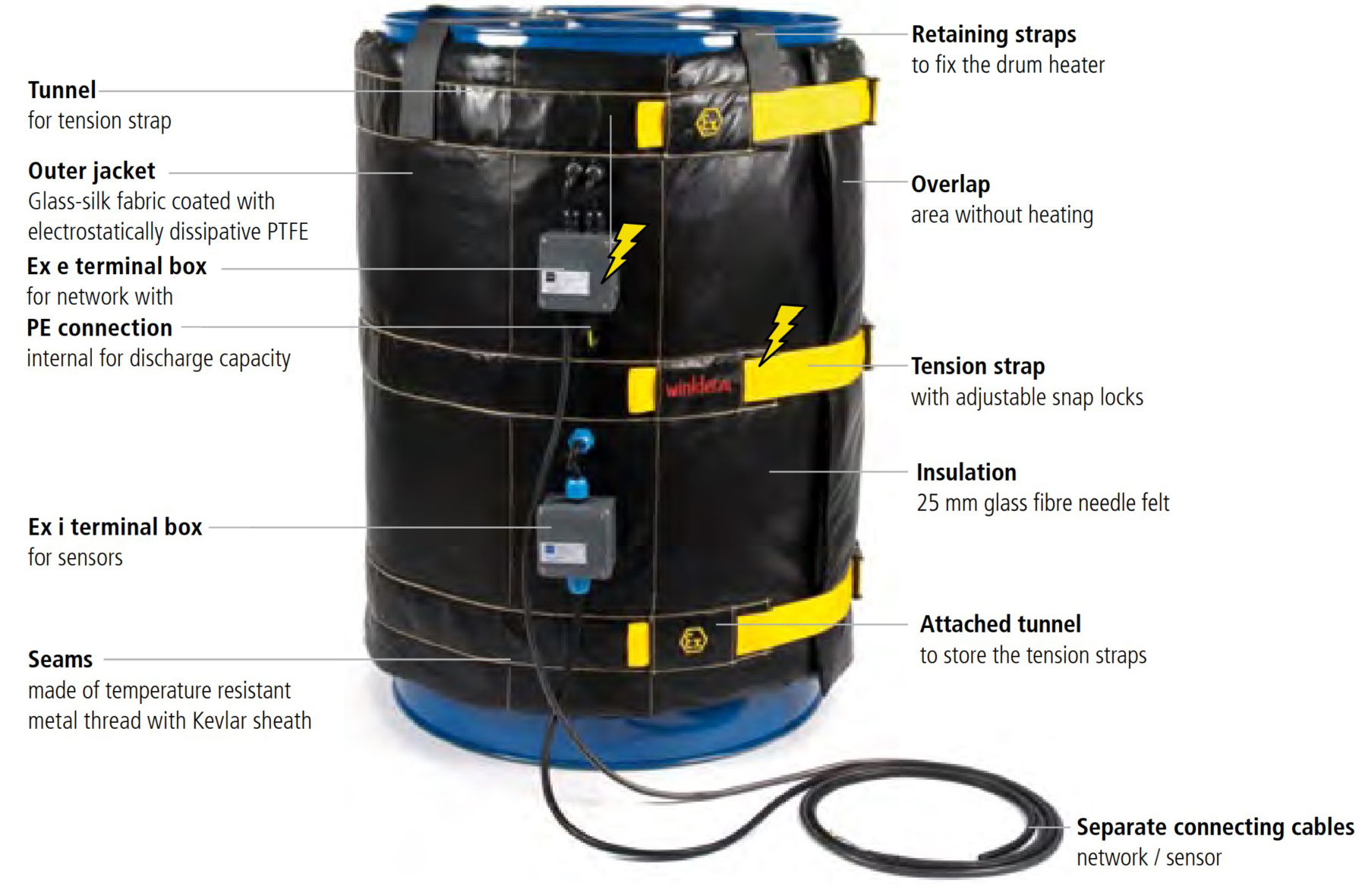

Structure |
Features and benefits |
· Very robust construction made of high quality, durable materials. Indoor and outdoor use possible. Protection classes: gas IP64 / dust IP6X.
· Wide range of variants in terms of dimensions, contours and fixation options cover most heating applications.
· High flexibility > simple assembly, also for large heating jackets and low ambient temperatures (down to –40 °C).
· Ready-for-connection, complete system tested and certified according to ATEX with EC Type Examination Certificate (system certification).
· The heating jackets are delivered completely ready configured and can be connected and put into operation immediately without further acceptance procedures.
Technical data for 230 VAC |
| heating jacket | Drum heater | heating for | Insulation | IBC-Container |
series WeXh…. | _ _ _ _ | D _ _ _ | B _ _ _ | I _ _ _ | C _ _ _ |
Nominal voltage | 230V (AC) / 50 Hz (other voltages available on request) | ||||
Heating power | Depending on design (max. 30 W/m heat conductor load) | ||||
Max. operating temperature heating jacket | + 200 °C | ||||
Temperature class | T6, T5, T4, max.T3 (depending on temperature setting controller / limiter) | ||||
Max. temperature limit in gas atmospheres | + 200 °C (180 °C / 190 °C) | ||||
Max. temperature limit in dust atmospheres | + 120 °C (100 °C / 110 °C) | ||||
Min. ambient temperature | - 40 °C | ||||
Max. ambient temperature | + 60 °C | ||||
Outer jacket | Electrostatically conducting PTFE fabric (black) | ||||
Fixtures | Tension straps with snap locks | ||||
Electrical connection | separate terminal boxes for network / sensor | ||||
Connecting cable | 3 m (other lengths available on request) | ||||
Ex sign | gas EX II 2G Ex e mb IIC T3 Gb | ||||
EC-Type Examination Certificate | TPS 11 ATEX 29587 011 X | ||||
Zones | 1/2 (gas), 21/22 (dust) | ||||
