847LPH + High PSI + Highly Accurate

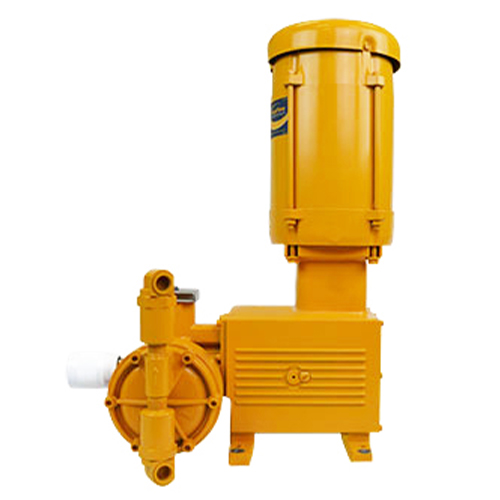

• AquFlow Series 2000은 견고하고 컴팩트한 유압 작동 다이어프램 펌프입니다. 최대 124Bar의 압력과 최대 847LPH의 유량을 처리하도록 설계되었다. Series 2000은 필요한 흐름 용량에 따라 심플렉스 및 듀플렉스 구성으로 사용할 수 있다. 높은 내구력을 가진 설계는 다양한 산업에서 광범위한 현장에 사용할 수 있습니다.
• Series 2000의 모든 구동 부품은 알루미늄 하우징에 완전히 보호된다. 이 강력하고 내구성 있는 디자인은 부식성 및 점성성 액체를 처리할 수 있는 동시에 가혹한 환경으로부터 부품을 보호한다. 저렴한 유지 보수 비용과 높은 내구성을 가진 안정적이고 효율적인 정량펌프입니다.
Feature | Spec |
Flow Capacity | Up to 847 LPH (Duplex) |
Pressure | Up to 124 Bar |
Design | Modular |
Metering Accuracy | +/- 1% |
Capacity Controls | Manual/Auto |
Safety | Built-in internal relief valve |
Availability | Duplex or Double Flow Capacity |
Liquid Handling | Able to handle difficult liquids like slurries, off-gasing, high viscosities |
• Specification
Specification | Measurement |
Flow Capacity Adjustment | 0–100% while the pump is running or stopped |
Turndown Ratio | Stroke Length 10:1 |
Metering Accuracy | Steady State: ± 1% |
Max. Process Fluid Temp. | Custom engineered metallic liquid end: 500°F (260C) |
Plunger Stroke Length | 2" |
Hydraulic Oil Capacity | - |
Displacement Per Stroke (by plunger size) | 3/4" 0.6988 cu. in. (11.45 ml) |
Liquid End Material Options | 316 SS, Alloy 20, Hastelloy C, PVC, PVDF and PTFE |
• Performance Table
Model No. | Capacity | Pressure | Speed | Plunger | Connection | Performance |
CD3T 0529-0X014 | 2.95 (11.2) | 1,800 | 29 | 5/8" | 3/8" | Curves |
CD3T 0558-0X014 | 5.90 (22.3) | 1,800 | 58 | 5/8" | 3/8" | Curves |
CD3T 0597-0X014 | 9.90 (37.5) | 1,800 | 97 | 5/8" | 3/8" | Curves |
CD3T 0512-0X014 | 11.9 (45.0) | 1,800 | 117 | 5/8" | 3/8" | Curves |
CD3T 0514-0X014 | 14.3 (54.1) | 1,800 | 140 | 5/8" | 3/8" | Curves |
CD3T 0519-0X014 | 19.5 (73.8) | 1,800 | 191 | 5/8" | 3/8" | Curves |
CD3T 0629-0X014 | 4.25 (16.0) | 1,000 | 29 | 3/4" | 3/8" | Curves |
CD3T 0658-0X014 | 8.55 (32.4) | 1,000 | 58 | 3/4" | 3/8" | Curves |
CD3T 0697-0X014 | 14.3 (54.1) | 1,000 | 97 | 3/4" | 3/8" | Curves |
CD3T 0612-0X014 | 17.2 (65.1) | 1,000 | 117 | 3/4" | 3/8" | Curves |
CD3T 0614-0X014 | 20.6 (78.0) | 1,000 | 140 | 3/4" | 3/8" | Curves |
CD3T 0619-0X014 | 28.1 (106.4) | 1,000 | 191 | 3/4" | 3/8" | Curves |
CD3T 0829-0X014 | 7.60 (28.8) | 360 | 29 | 1" | 3/8" | Curves |
CD3T 0858-0X014 | 15.2 (57.5) | 360 | 58 | 1" | 3/8" | Curves |
CD3T 0897-0X014 | 25.4 (96.1) | 360 | 97 | 1" | 3/8" | Curves |
CD3T 0812-0X015 | 30.6 (115.8) | 360 | 117 | 1" | 3/8" | Curves |
CD3T 0814-0X015 | 36.7 (138.9) | 360 | 140 | 1" | 3/8" | Curves |
CD3T 0819-0X015 | 50.0 (189.3) | 360 | 191 | 1" | 3/8" | Curves |
CD3T 1029-0X014 | 11.8 (44.7) | 210 | 29 | 1-1/4" | 3/8" | Curves |
CD3T 1058-0X014 | 23.7 (89.7) | 210 | 58 | 1-1/4" | 3/8" | Curves |
CD3T 1097-0X018 | 39.7 (150.3) | 210 | 97 | 1-1/4" | 1/2" | Curves |
CD3T 1012-0X018 | 47.9 (188.1) | 210 | 117 | 1-1/4" | 1/2" | Curves |
CD3T 1014-0X018 | 57.3 (216.9) | 210 | 140 | 1-1/4" | 1/2" | Curves |
CD3T 1019-0X018 | 78.2 (296.0) | 210 | 191 | 1-1/4" | 1/2" | Curves |
CD3T 1229-0X014 | 17.1 (64.7) | 195 | 29 | 1-1/2" | 3/8" | Curves |
CD3T 1258-0X015 | 34.2 (129.5) | 195 | 58 | 1-1/2" | 3/8" | Curves |
CD3T 1297-0X018 | 57.2 (216.5) | 195 | 97 | 1-1/2" | 1/2" | Curves |
CD3T 1212-0X018 | 69.0 (261.2) | 195 | 117 | 1-1/2" | 1/2" | Curves |
CD3T 1214-0X018 | 82.5 (312.3) | 195 | 140 | 1-1/2" | 1/2" | Curves |
CD3T 1219-0X018 | 112.0 (424.0) | 195 | 191 | 1-1/2" | 1/2" | Curves |
• S2000 Options
Capacity Control Options
- Dual Axis with both stroke length and stroke speed adjustable.
Stroke Length Controls
- Manual: Standard on all pumps.
- Electric: Electric stepper motor. Capable of 4-20mA input.
- Pneumatic: Runs on 30 PSI air for hazardous environment.
• Liquid Handling Options
Tubular
- For liquids with suspended solids/slurries that may clog. Good for high viscosity liquids also.
Degassing Valve
- Some challenging liquids can cause air locking due to off gassing. Our pump head with degassing valve ensures accurate and consistent pumping by letting our gas bubbles from the pump head.
Double Ball Check Valve
- An added measure of assurance that you have the position valve shut off.
Tungsten Carbide Valve Balls
- For abrasive liquids
• Leak Detection Options
Leak Detection
- There are two types of leak detection options available with AquFlow pumps.
Conductive
- Conductivity probe between 2 diaphragms to sense any break or rupture.
Vacuum
- Uses a vacuum switch between 2 diaphragms to sense any rupture or failure.
• Other Options
Liquid Connections
- NPT / FLANGE / TRICLAMP
Motor Options
- Enclosure: TEFC, TENV, Explosion Proof, Washdown
- Power Supply: ACV 115V, 230V, 380V, 460V, DC-12, 24, 90, 180, Single Phase, 3-Phase
