ACCESSORIES FOR DRUM PUMPS
|

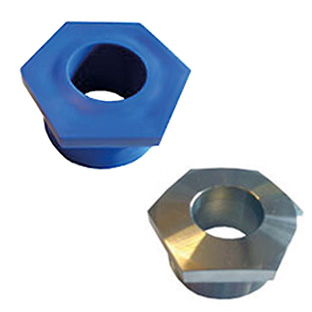

Barrel adapter for secure fixing of drum pump in bung hole of a drum G 2″. The barrel adapters fit due to their 2″ thread in 60 and 200 liter steel drums. For use with plastic drums or plastic containers they can be combined with the thread adapters.
|

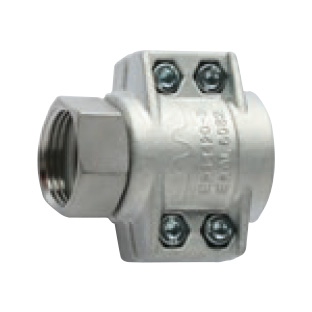

Hose connectors in stainless steel with clamps made of aluminium (connection to pump tube female thread 1¼” and connection to nozzle female thread 1″).
|

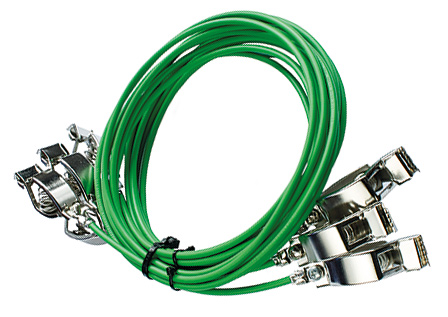

Bounding ground set
|
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
Stainless steel hose clamp for secure fixing of hose at hose barb.
|

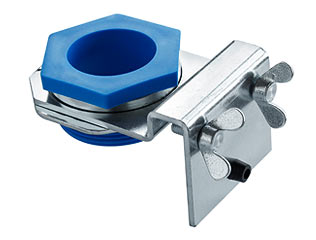

Safety clamp made of tool steel for a secure fixing of barrel pump in open containers and open drums.
|
Emission proof drum adapter for pump tube diameter 41 mm, FKM-seals, thread 2″. Prevent emission of harmful gases and vapours out of the drum. A vacuum in drum is equalized by a valve.
| ||||||||||||||
| ||||||||||||||||
Screw cap for IBC IG 2″, optional with barrel adapter PP Ø 41 mm
|

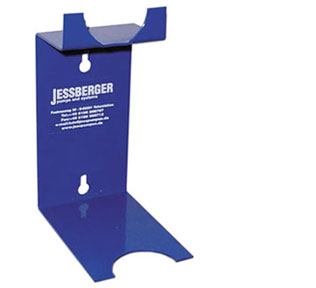

Wall hanger for drum pumps for a secure storage of drum pumps when out of operation and for protection against damage.
|

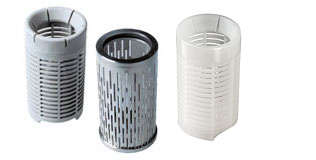

Strainer for protection the barrel pump when abrasive particles are present. Polypropylene Stainless steel PVDF
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||||

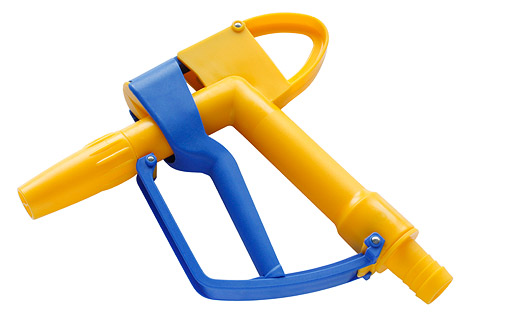

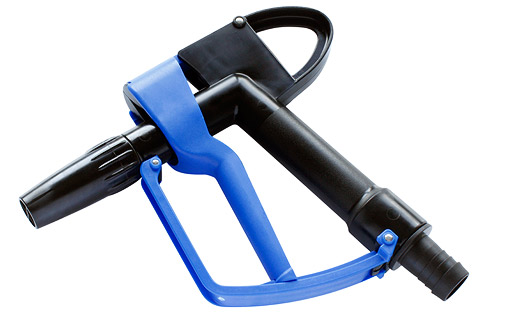

Nozzle made of polypropylene Housing and internal parts made of polypropylene, valve seat and O-rings made of FKM or EPDM, spring of hastelloy 2.4610, rotatable hose connection. Flow rate: 80 l/min*
|
Nozzle made of PVDF Housing and internal parts made of polypropylene, valve seat and O-rings made of FKM or EPDM, spring of Hastelloy 2.4610, rotatable hose connections. Flow rate: 80 l/min*
|

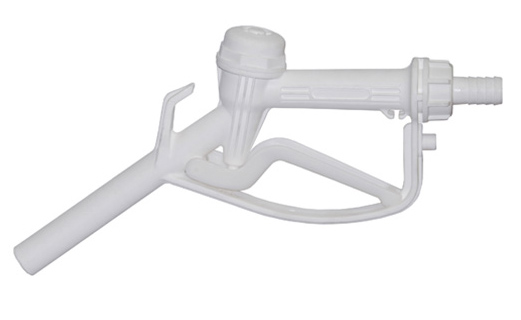

Manual nozzle made of polypropylene with outlet spout Ø 25 mm Housing and internal parts made of white polypropylene, valve seat and O-rings made of NBR, spring made of stainless steel. Flow rate: 100 l/min*
|
* Test media water 20°C, 2 m horizontal pressure pipe 1″, oval gear meter 1″, measured values: ± 5%
|

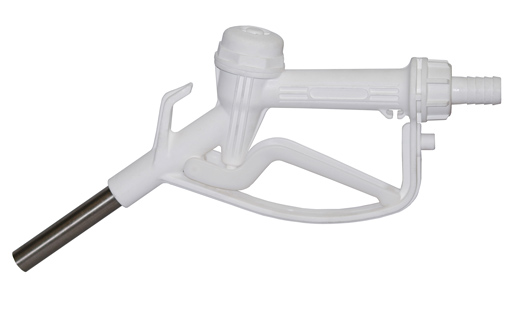

Manual nozzle made of polypropylene for AdBlue, with stainless steel outlet spout in Ø 19 mm Housing and internal parts made of white polypropylene, valve seat and O-rings made of FKM, spring made of stainless steel. Flow rate: 100 l/min*

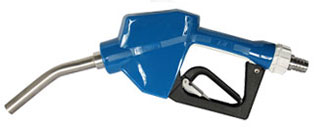

| Automatic nozzle made of stainless steel for AdBlue, with a outlet spout in Ø 19 mm, swivel hose connection Housing and internal parts made of stainless steel, valve seat and O-rings of FKM, spring of stainless steel. Flow rate: 80 l/min*
|
Nozzle made of nickel-plated brass, PTFE seals, rotatable hose connection For filling and transferring neutral and aggressive media and liquids, also in the field of pharmaceutical and the food industry. Housing and internal parts are made, of nickel-plated brass. Seals made of PTFE. Flow rate: 80 l/min*
|
* Test media water 20°C, 2 m horizontal pressure pipe 1″, oval gear meter 1″, measured values: ± 5%
|

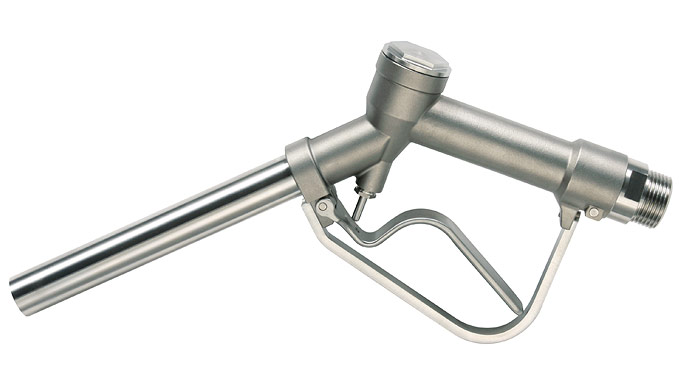

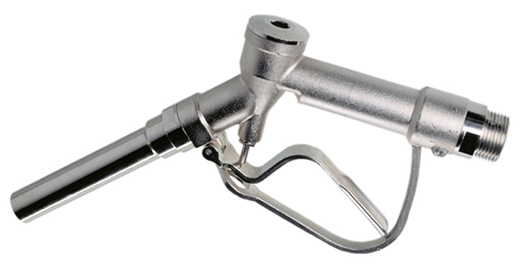

Nozzle made of stainless steel 316Ti for use in chemical, pharmaceutical and food-industry. Housing and inner parts of stainless steel, seals of PTFE. Flow rate: 80 l/min*
|
Nozzle made of Aluminium for diesel, female thread, suitable to discharge hose male thread. Flow rate: 60 l/min*
|

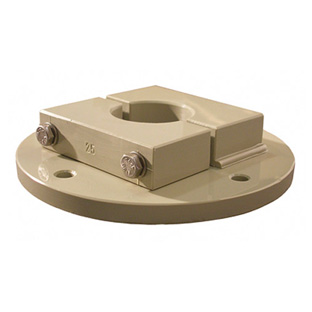

Clamping flange made of polypropylene for IBC-Container (to fix a pump with Ø 40/41 mm), Ø 140 mm, 4-holes, screw-hole circle 115 mm.
|
* Test media water 20°C, 2 m horizontal pressure pipe 1″, oval gear meter 1″, measured values: ± 5%
|
 |
| |||||||||||||||||||||||||||||||||||||||

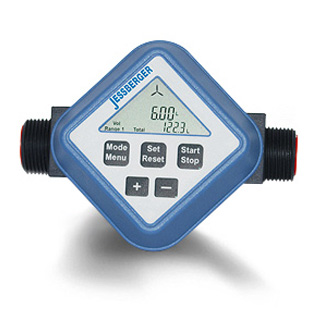

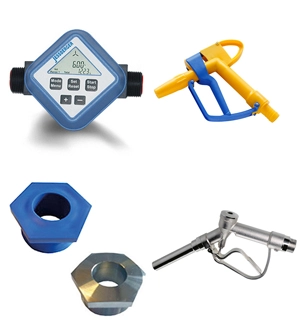

Electronic flowmeter FM 120, housing of PP or PVDF, outer thread G 1″, seal of FKM Versions: FM 120 Standard version FM 120 M01, as the standard version but with quantity preset and switch output open drain, incl. 1 m cable with three-pole diode plug for controlling a pump or for opening and closing of a magnetic valve. This counter can be combined either with a special barrel pump motor, or the remote control switch (see below 9028). FM 120 I, as the standard version but with pulse output, incl. 1 m three-wire cable without a plug. Quadrature signal, open drain.
| Electronic kit for quantity preset
Remote switch in the plug housing
Fittings of polypropylene for counter FM 120 PP.
| |||||||||||||||||||||||||||||||||||||||
Thread adapters
 |
Thread adapters for equalization of different threads at canisters, drums, containers, etc. when fixing f.e. hand pumps. Due to the big variety of different canisters, drums, containers, etc. that are available in the market there is often a need to | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Classification (without any obligations):
We can send you a drawing of the adapters via e-mail. |
