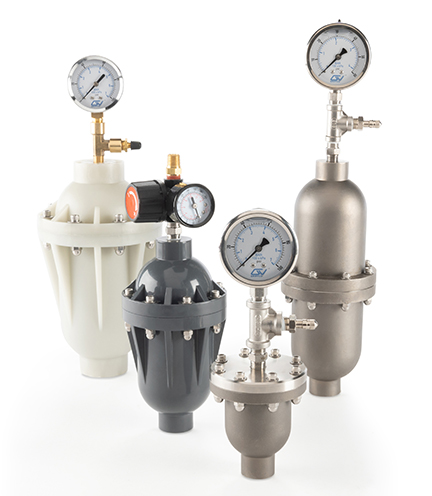

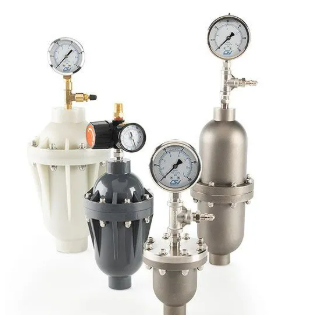

Pulsation Dampeners
Griffco pulsation dampeners are designed to enhance the performance of the chemical feed systems by reducing harmful shock waves and delivering continuous chemical dosage at the injection point.
Pulsation Dampeners Features |
• 22 volumetric sizes available
• Dampening effect +2.5%
• Operating pressures up to 1000 psi (70 bar) - Metals, 150 psi (10 bar) – Plastics
Griffco Benefits |
• High reliability at affordable price [저렴한 가격에 높은 신뢰성이 장점 입니다.]
• Robust, machined contruction [견고한 구조로 내구성이 높습니다.]
• Made in USA
Materials of Construcion | Connections |
• Noryl®, PVC, Polypropylene, PVDF, 316 SS | • Types: NPT, BSPT, Union, Flange, Socket |
• Diaphragm: EPDM (Standard); Viton®, Hypalon® (Optional) | • 0 - 300 psi and 0 - 1000 psi |
• Gauge & Charging Valves: Brass (Standard); 316 SS (Optional) | • Sizes: 1/2", 3/4", 1" and 2" |
Maximum Temperature | Gauges |
• Polypropylene: 175°F | • 0 - 160 psi (Standard) |
• PVC: 140°F | • 0 - 60 psi; 0 - 100 psi; 0 - 200 psi: 0-250 psi (optional) |
• PVDF: 225º F | • Gauge port sizes of 1/8", 1/4", 1/2" |
• Noryl: 225º F |
|
• 316SS: Diaphragm dependent |
|
| website | catalog | manual | drawing |

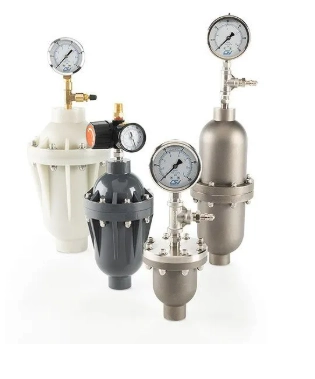

Pulsation Dampeners
