JP-120 / JP-140
상세설명

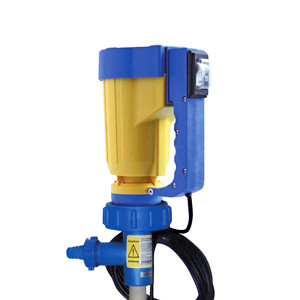

ELECTRIC UNIVERSAL MOTOR
230 VOLT, 50 HZ, 250 WATT OR 450 WATT, IP 24,
• DRUM PUMP MOTOR JP-120 / JP-140 ALTERNATIVELY 115 VOLT, 60 HZ
가볍고 편리하며 강력한 DRUM PUMP로 실험실에서 사용될 수 있도록 설계되었습니다.
• 편리하고 내구성이 높고 강력한 Motor는 Drum Pump의 흡입 튜뷰를 구동하는 사용되는 MOTOR입니다.
• 약간의 점성이 있는 액체(JP-120[200mPas] / JP-140[400mPas]), 화학성을 지닌 액체의 이송에 적합합니다. 그것의 정교한 기술로 다양한 액체를 이송할 때 효율적이고 안전한 사용이 가능합니다.
• Drum Pump Motor는 경량(2 / 2,3Kg)뿐만 아니라 컴팩트한 디자인과 사용 편의성이 특징이다. 내부 순환 모터로써 최적의 공기 냉각, 저소음 및 높은 작동 안전성과 높은 내구력을 가지고 있습니다.
• Polypropylene으로 만들어진 모터 하우징은 산과 알칼리의 공격적인 증기가 존재할 때 높은 화학적 저항을 보장합니다.
ELECTRIC UNIVERSAL MOTOR JP-120
230 Volt, 50 Hz, 250 Watt, IP 24, double insulation protection class II, over load protection switch with integrated low voltage release. Thermal protection, 5 m cable with plug.Also available in 115 volts, 60 Hz.
Speed control as option.
ELECTRIC UNIVERSAL MOTOR JP-140
230 Volt, 50 Hz, 450 Watt, IP 24, double insulation protection class II, over load protection switch with integrated low voltage release. Thermal protection, 5 m cable with plug. Also available in 115 volts, 60 Hz.
Speed control as option.

ELECTRONIC SPEED CONTROL |
• The speed of the drum pump motor JP-120 / JP-140 can be controlled via a knob on the side of the motor housing electronically. This enables an adjustment of the flow rate. The electronic speed control is available as an option. |
Motor JP-120 without pump tube | ||
Version | Voltage | Order-No. |
without LVR | 230 V 1~, 50 Hz, 250 W | 1120 2300 |
115 V 1~, 60 Hz, 250 W | 1120 1150 | |
with LVR | 230 V 1~, 50 Hz, 250 W | 1120 2301 |
115 V 1~, 60 Hz, 250 W | 1120 1151 | |
without LVR, with SC | 230 V 1~, 50 Hz, 250 W | 1120 2302 |
115 V 1~, 60 Hz, 250 W | 1120 1152 | |
with LVR + SC | 230 V 1~, 50 Hz, 250 W | 1120 2303 |
115 V 1~, 60 Hz, 250 W | 1120 1153 | |
LVR : Low voltage release SC : Speed control | ||
Operating data JP-120 | |
Flow rate (with hose and oval gear meter) | Ø 25 mm up to 20 l/min* Ø 28 mm up to 35 l/min* Ø 32 mm up to 40 l/min* |
Head | Ø 25 mm up to 5 m* Ø 28 mm up to 7 m* Ø 32 mm up to 7 m* |
Viscosity | up to 200 mPas* |
Density | up to 1,2* |
* All physical data are real measured maximum values. | |
Motor JP-140 without pump tube | ||
Version | Voltage | Order-No. |
without LVR | 230 V 1~, 50 Hz, 450 W | 1140 2300 |
115 V 1~, 60 Hz, 450 W | 1140 1150 | |
with NSP | 230 V 1~, 50 Hz, 450 W | 1140 2301 |
115 V 1~, 60 Hz, 450 W | 1140 1151 | |
without LVR, with SC | 230 V 1~, 50 Hz, 450 W | 1140 2302 |
115 V 1~, 60 Hz, 450 W | 1140 1152 | |
with LVR + SC | 230 V 1~, 50 Hz, 450 W | 1140 2303 |
115 V 1~, 60 Hz, 450 W | 1140 1153 | |
LVR : Low voltage release SC : Speed control | ||
Operating data JP-140 | |
Flow rate (with hose and oval gear meter) | Ø 25 mm up to 23 l/min* Ø 28 mm up to 40 l/min* Ø 32 mm up to 49 l/min* |
Head | Ø 25 mm up to 7 m* Ø 28 mm up to 9 m* Ø 32 mm up to 10 m* |
Viscosity | up to 400 mPas* |
Density | up to 1,3* |
* All physical data are real measured maximum values. | |
MADE OF POLYPROPYLENE ADN STAINLESS STEELFOR CONVEYING SMALL QUANTITIES MADE OF POLYPROPYENE AND STAINLESS STEEL
• 실험실에서 사용되는 작은 용기에서 액상을 운반하기위한 흡입 튜브.
• 다양한 펌프 튜브 직경 / 길이 / 호스 사이즈 : 1/2″ (PP Ø 25mm) 또는 3/4″ (PP Ø 28 및 32mm),
STAINLESS TUBE의 호스사이즈 : 3/4" (SS Ø 28mm) 또는 1" (SS Ø 32mm)
펌프 튜브는 전기 및 공기 작동 모터와 결합하여 사용됩니다.
Polypropylene | ||
(Drive shaft : Stainless steel) PP (SS) | ||
Length | Order-No. | |
Pump tube Ø 25 mm | 500 mm | 2625 0050 |
700 mm | 2625 0070 | |
1000 mm | 2625 0100 | |
Pump tube Ø 28 mm | 500 mm | 2628 0050 |
700 mm | 2628 0070 | |
1000 mm | 2628 0100 | |
Pump tube Ø 32 mm | 700 mm | 2632 0070 |
1000 mm | 2632 0100 | |
1200 mm | 2632 0120 | |
Polypropylene | ||
(Drive shaft : Hastelloy) PP (HC) | ||
Length | Order-No. | |
Pump tube Ø 25 mm | 500 mm | 2125 0050 |
700 mm | 2125 0070 | |
1000 mm | 2125 0100 | |
Pump tube Ø 28 mm | 500 mm | 2128 0050 |
700 mm | 2128 0070 | |
1000 mm | 2128 0100 | |
Pump tube Ø 32 mm | 700 mm | 2132 0070 |
1000 mm | 2132 0100 | |
1200 mm | 2132 0120 | |
Stainless steel 316Ti | ||
(Drive shaft : Stainless steel) | ||
Length | Order-No. | |
Pump tube Ø 28 mm | 700 mm | 2228 0070 |
1000 mm | 2228 0100 | |
1200 mm | 2228 0120 | |
Pump tube Ø 32 mm | 700 mm | 2232 0070 |
1000 mm | 2232 0100 | |
1200 mm | 2232 0120 | |
Polyvinylidenfluorid = PVDF (shaft : Hastelloy) | ||
Length | Order-No. | |
Pump tube Ø 32 mm | 500 mm | 2332 0050 |
700 mm | 2332 0070 | |
1000 mm | 2332 0100 | |
1200 mm | 2332 0120 | |
FOR CONVEYING AGGRESSIVE MEDIA SUCH AS HIGHLY CONCENTRATED ACIDS AND ALKALIES
• Polyvinylidene fluoride = PVDF 펌프 튜브 [ 최대 사용 가능온도 : 90°C ]
• PVDF(펌프 튜브)와 Hastelloy-C(구동축)로 만든 펌프 튜브는 내 화학성 및 내열성이 우수합니다.
• PVDF 펌프 튜브는 특히 차아
염소산 나트륨, 크롬산, 불산, 차아 염소산 나트륨, 질산 및 기타 화학 물질과
같은 매우 공격적인 액상을 안전하게 이송 할 수 있습니다.
• PVDF 펌프 튜브는 호스커넥터 3/4"가 포함되어 있습니다.
.
website | catalog | manual | drawing |
JP-120 / JP-140
상세설명

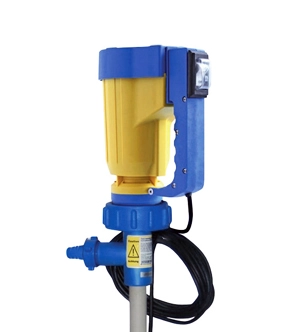

ELECTRIC UNIVERSAL MOTOR
