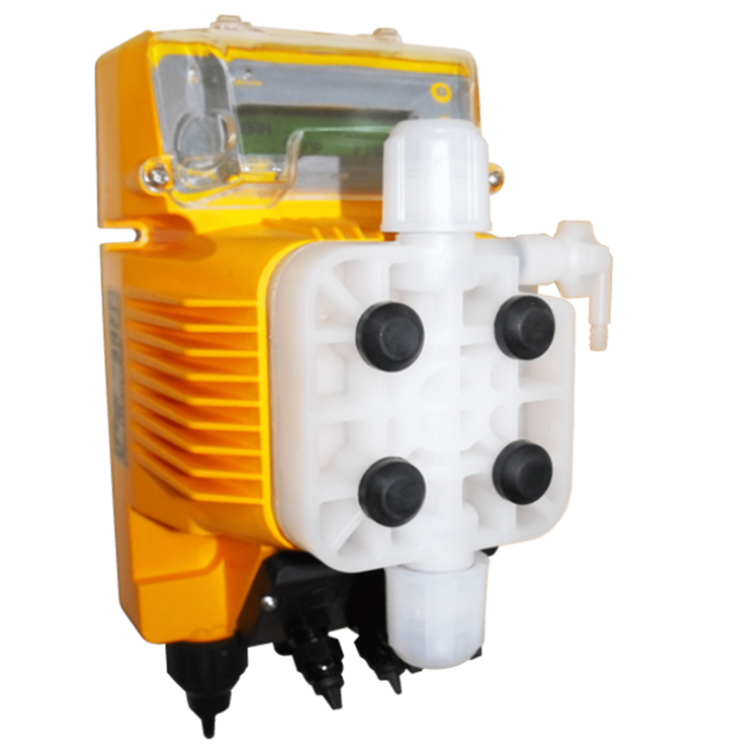

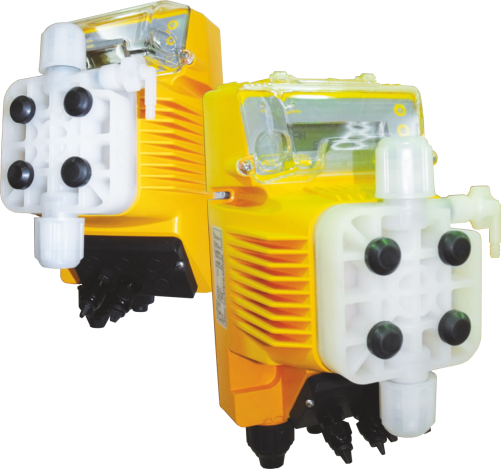

ATHENA SERIES

1원

Solenoid Pump

Up to 20 Bar / Up to 110 L/H

장바구니

문의하기

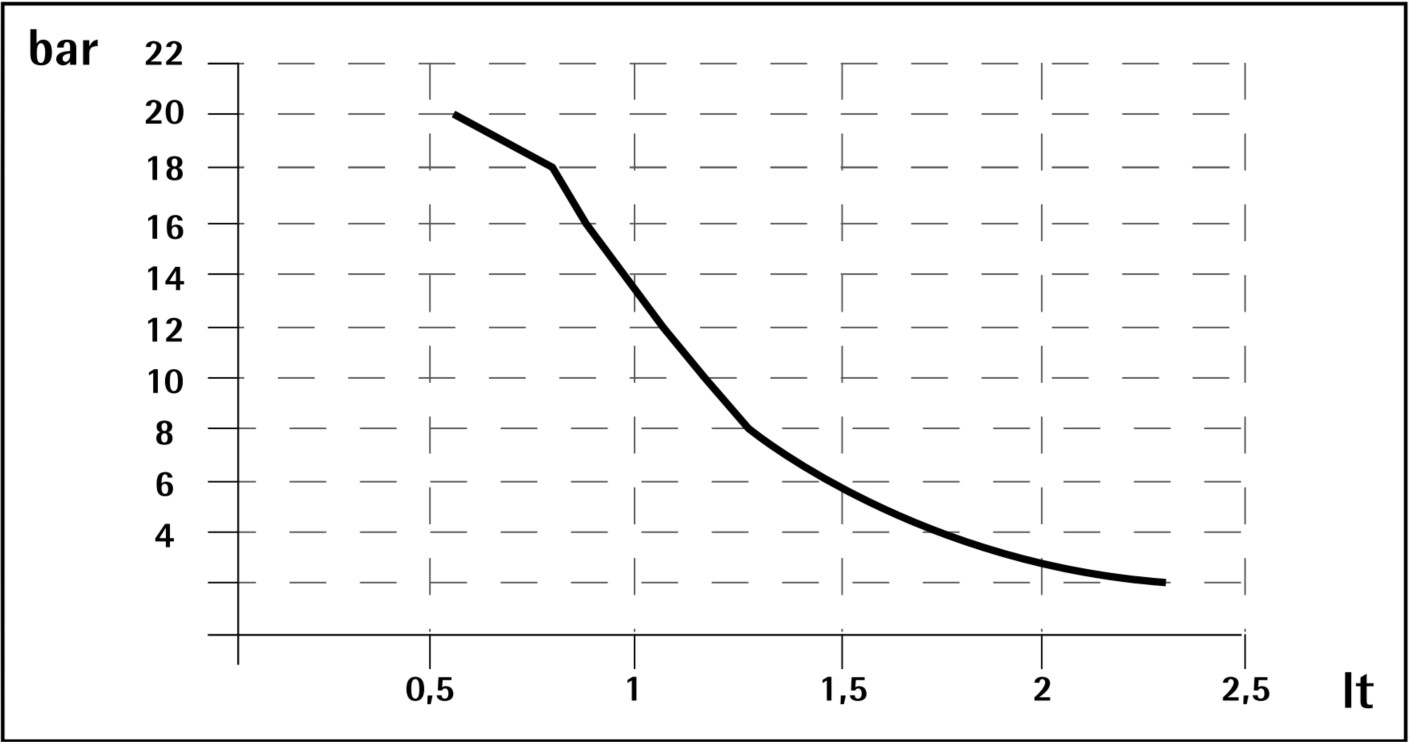

ATHENA LOW FLOW
Flow Rates	Pressures	CC/Stroke	Connections	Strokes/Min	Consuption	Weight
0,4 l/h	20 bar	0,06	4x6 / 4x7	120	14 watt	3kg
0,8 l/h	16 bar	0,11	4x6 / 4x7	120	14 watt	3kg
1,2 l/h	10 bar	0,16	4x6 / 4x7	120	14 watt	3kg
1,5 l/h	6 bar	0,21	4x6 / 4x7	120	14 watt	3kg

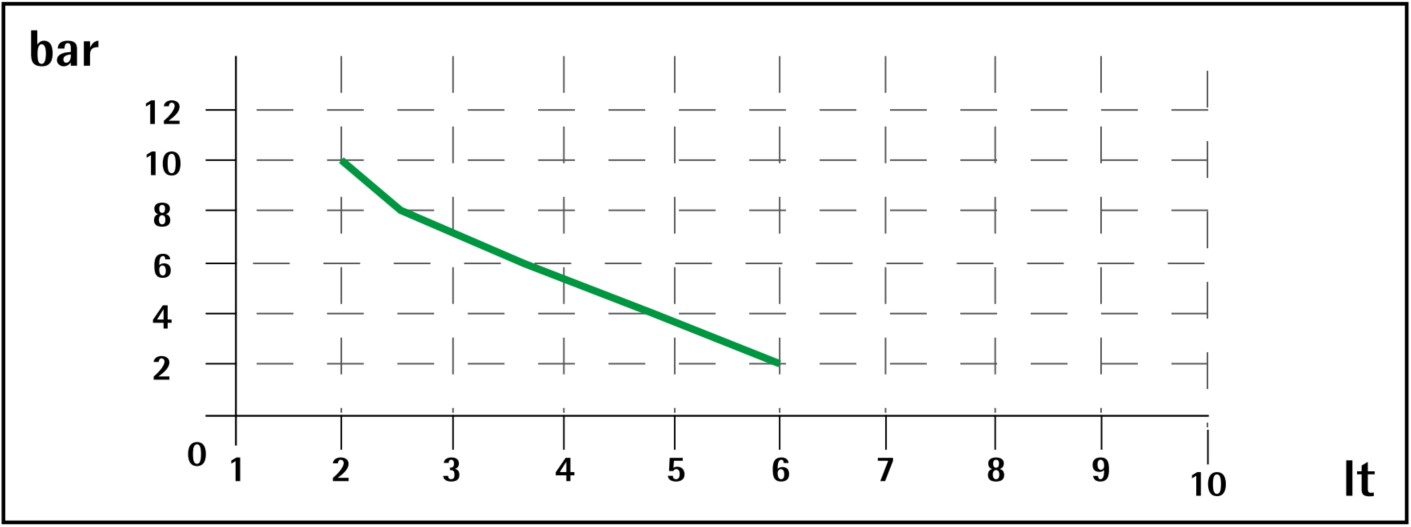

ATHENA AIR COND
Flow Rates	Pressures	CC/Stroke	Connections	Strokes/Min	Consuption	Weight
2 l/h	10 bar	0,19	4x6	180	12,2 watt	3kg
3 l/h	7 bar	0,28	4x6	180	12,2 watt	3kg
6 l/h	2 bar	0,56	4x6	180	12,2 watt	3kg

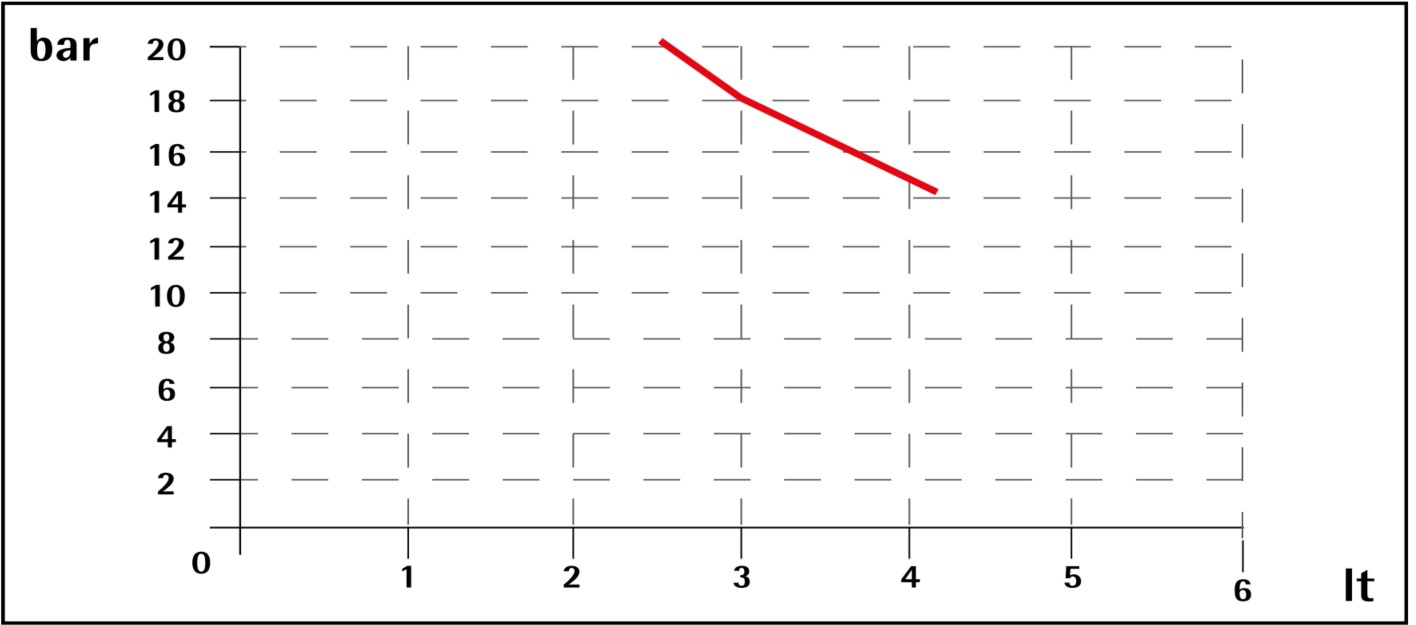

ATHENA 1
Flow Rates	Pressures	CC/Stroke	Connections	Strokes/Min	Consuption	Weight
2,5 l/h	20 bar	0,35	4x6 / 4x7	120	14 watt	3kg
3 l/h	18 bar	0,42	4x6 / 4x7	120	14 watt	3kg
4,2 l/h	14 bar	0,58	4x6 / 4x7	120	14 watt	3kg

ATHENA 2
Flow Rates	Pressures	CC/Stroke	Connections	Strokes/Min	Consuption	Weight
0,4 l/h	20 bar	0,06	4x6 / 4x7	120	14 watt	3kg
0,8 l/h	16 bar	0,11	4x6 / 4x7	120	14 watt	3kg
1,2 l/h	10 bar	0,16	4x6 / 4x7	120	14 watt	3kg
1,5 l/h	6 bar	0,21	4x6 / 4x7	120	14 watt	3kg

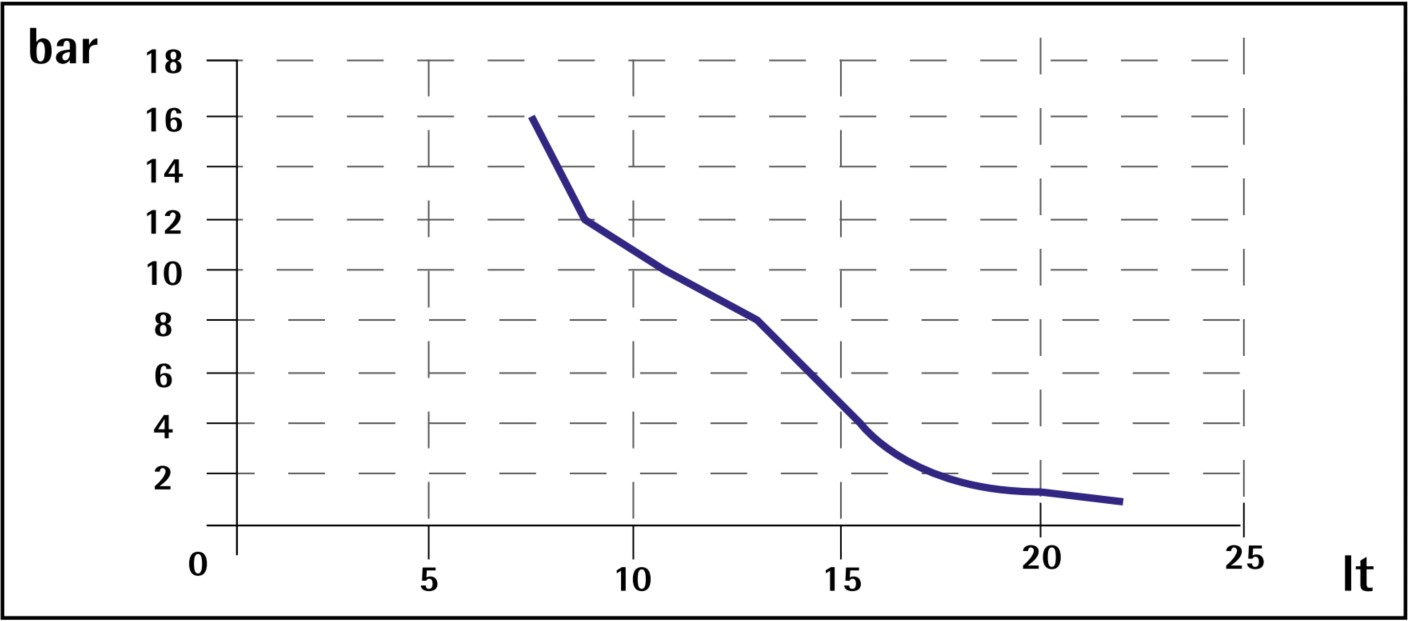

ATHENA 3
Flow Rates	Pressures	CC/Stroke	Connections	Strokes/Min	Consuption	Weight
7 l/h	16 bar	0,39	4x6	300	28 watt	4kg
10 l/h	10 bar	0,55	4x6	300	28 watt	4kg
14 l/h	6 bar	0,78	4x6	300	28 watt	4kg
16 l/h	2 bar	0,89	4x6	300	28 watt	4kg

AT.BX		AT.BL
• ANALOGIC 타입 – 수동 유량 조절 타입		• ANALOGIC 타입 – 수동 유량 조절 타입
• 0-20%, 0-100% 두가지 유량 조절 선택 가능		• 0-20%, 0-100% 두가지 유량 조절 선택 가능
		• Quick connection level probe

AT.AM		AT.MT
• ANALOGIC 타입 – 비례제어 유량 조절		• Digital 타입 – 비례제어 유량 조절
• Digital signal(Pulse) input(4:1-1:1-10:1-1xN)		• Digital signal(Pulse) input(1:n, n:1, 1:c [batch])또는 Directly in ppm
• Analogic signal (4-20mA) input		• Analogic signal (0/4-20mA, 20-4mA) input
•0-100% 수동 유량 조절 가능		•디지털 유량 조절
