HAND PUMP
JP-07
• 다양한 Seal 선택이 가능하며, Polypropylene로 제조된 펌프 본체와 다양한 내부 부품이 선택이 가능하며 광범위한 사용이 가능한 수동 핸드 펌프입니다.
• 상부 손잡이를 위-아래로 펌핑 시켜 드럼통 또는 말통 내부에 생성된 압력으로 인해 토출 측의 밸브 개폐로 연속적인 토출이 가능한 펌프입니다.
HAND PUMP JP-07
Available with different seals, pump body made of polypropylene, inner parts but also made of stainless steel.
Pump body: made of polypropylene, internal parts also made of stainless steel
Seal: acc. media
Flow rate: Water: 20 l/min*, Oil SAE 30: 9 l/min. at 20°C*
Pump tube length: Suction pump consisting of four parts, each 250 mm
Pump tube diameter: max. 31 mm
Rubber adapter: for bung hole diameters from 46,5 to 60 mm
Temperature: 40°C*
Viscosity: 400 mPas*
By pumping movement pressure can be generated in a barrel or canister. After this pressure has been build, the medium flows out independently after opening the filling tap, so that a certain quantity can be filled by the tap.
Three adapters for bunghole diameters of 46.5 to 60 mm are included.

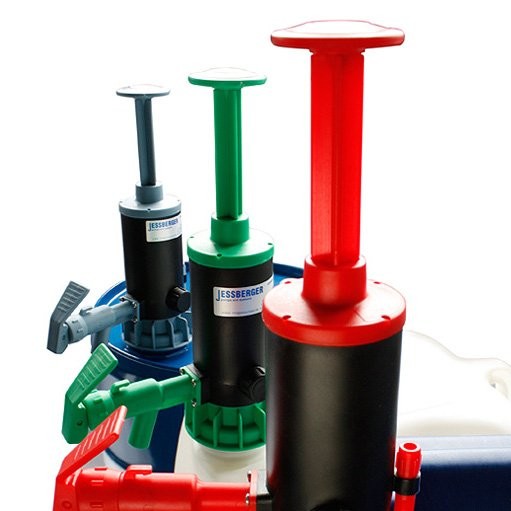

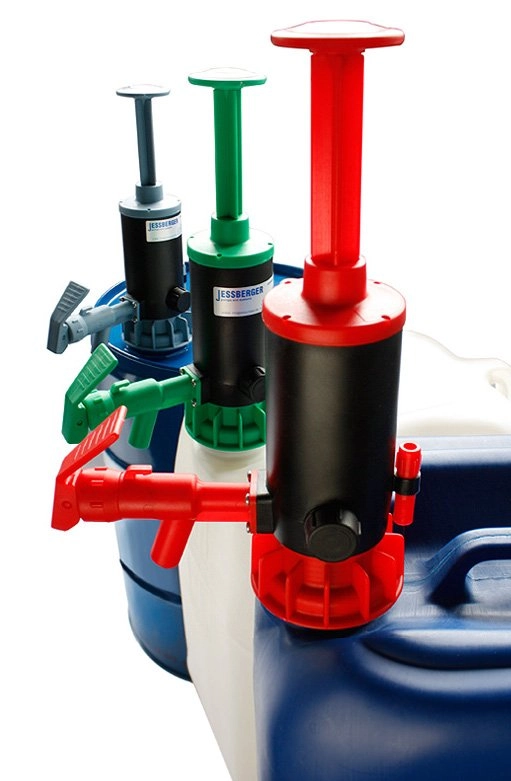

JP-07 BLUE with NBR seals for the transfer of oily substances and petroleum-based products.
Order No.: 6007 0001
JP-07 RED with EPDM seals for the transfer of basic media. Attention: the internal parts of the hand pump are also made of stainless steel.
Order No.: 6007 00002
JP-07 GREEN with FKM seals for light acids and chemicals. Attention: the internal parts of the hand pump are also made of stainless steel.
Order No.: 6007 0003
Optional accessories for hand pumps JP-07:
Transverse hose (1.5 m) incl. tap
