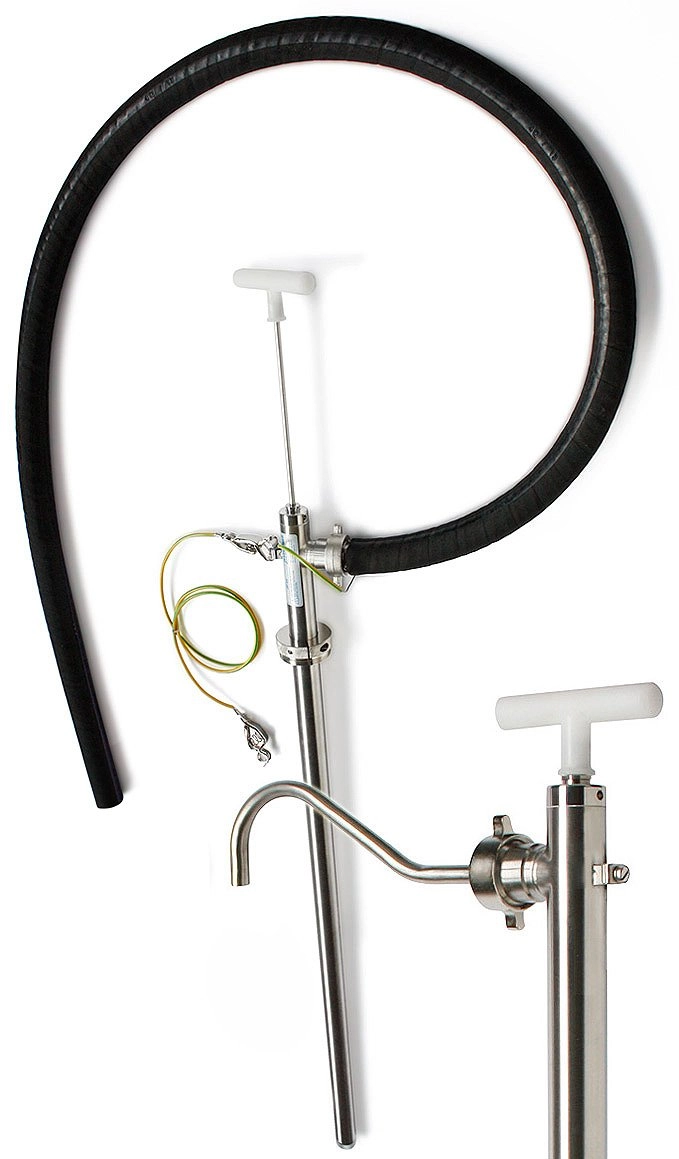

STAINLESS STEEL HAND PUMP
JP-05
• 가연성액체를 이송하기에 적합한 수동식 핸드 펌프입니다.
HAND PUMP JP-05
Suitable for flammable liquids.
Pump material: Stainless steel 316Ti
Seal: PTFE
Flow rate: 0,3–0,6 l/stroke*
Pump tube length: 700 and 1000 mm
Pump tube diameter: 32 mm
Suitable for flammable liquids such as solvents (including acetone)
Certified: risk analysis made by TUEV Munich
Necessary accessories:
Discharge arc with PTFE seal and wing nut
Hose connection made of stainless steel ¾ or 1″, with PTFE seal and wing nut made of brass, nickel plated
Drum adapter made of brass nickel plated R2″ with fixing device
Anti-static set consisting of 4 copper cables (absolutely
necessary when pumping flammable liquids)
Order No.:
700 mm 6005 0700
700 mm Ex 6005 700
1000 mm 6005 1000
1000 mm Ex 6005 1000
