MANUAL HAND PUMPS
JP-04
• 안전하고 편리한 이송 위한 수동 핸드 펌프입니다.
HAND PUMP JP-04
For different media.
Pump material: Polypropylene
Shaft: Polypropylene
Seals: depending on the media
Flow rate: ca. 0,3 l/stroke*
Hose connection: ¾”
Pump tube length: 500–900 mm
Pump tube diameter: max. 34 mm
Thread adapter: G 2″

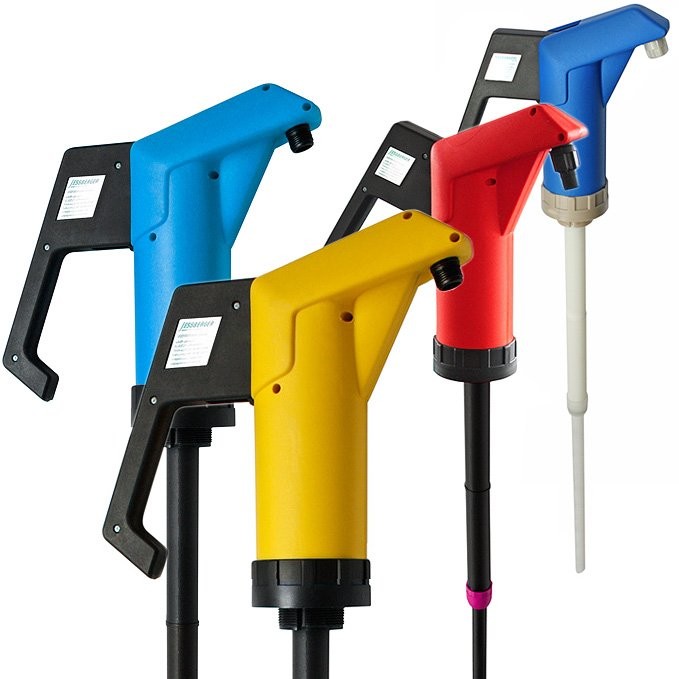

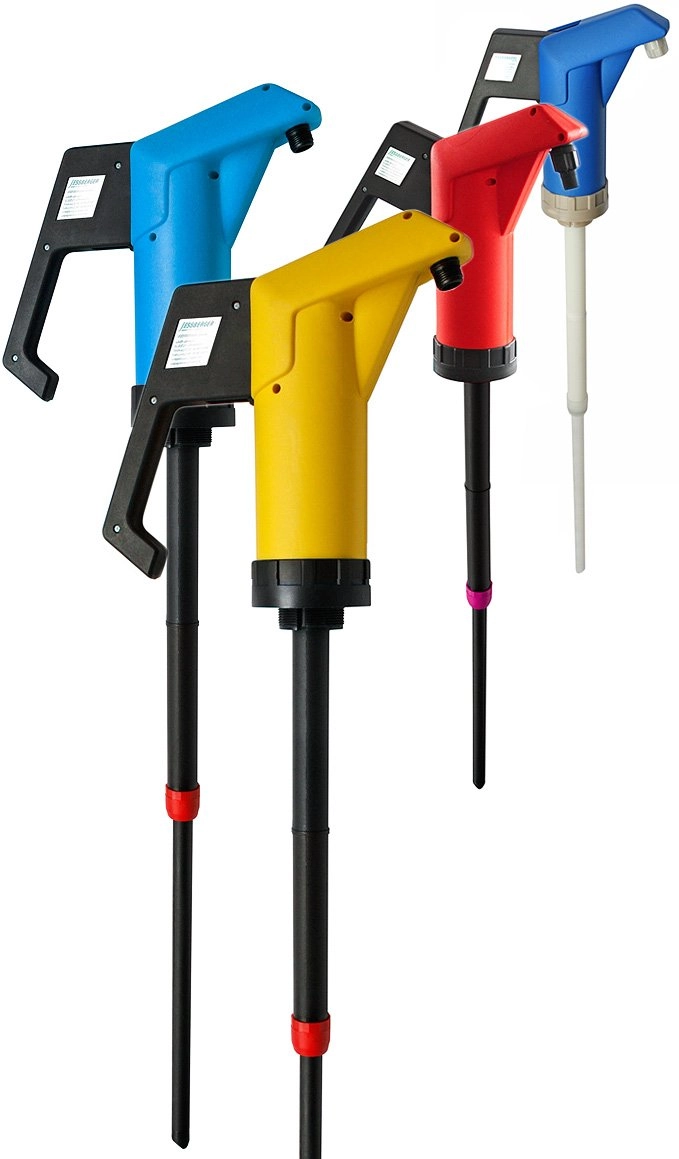

JP-04 YELLOW with FKM seals for aggressive media such as acids and alkalis
Order No.: 6004 0000
JP-04 BLUE with NBR seals for mineral oil products
Order No.: 6004 0001
JP-04 RED with EPDM seals for alkaline media
Order No.: 6004 0002
JP-04 BLUE/ WHITE with fluoropolymer seals for liquid foods
Order No.: 6004 0003
