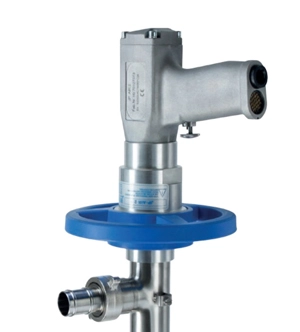

JP-AIR 2

1원

방폭 에어 드럼펌프, 600W

80 L/min, 1.5 Bar

장바구니

문의하기

Motor without pump tube
Version	Order-No.
600 W	3002 0600
600 W at 6 bar operating pressure
Air consumption under load 15 l/sec.

Operating data JP-AIR 2
Flow rate (with hose and oval gear meter)	Ø 41 mm up to 80 l/min* (Rotor) Ø 41 mm up to 66 /min* (Impeller)
Head	Ø 41 mm up to 10 m* (Rotor) Ø 41 mm up to 15 m* (Impeller)
Viscosity	up to 600 mPas*
Density	up to 1,5*
* All physical data are real measured maximum values. * Test medium water 20 °C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5%

Motor without pump tube
Version	Order-No.
600 W	3002 0600
600 W at 6 bar operating pressure
Air consumption under load 15 l/sec.

Operating data JP-AIR 2
Flow rate (with hose and oval gear meter)	Ø 41 mm up to 80 l/min* (Rotor) Ø 41 mm up to 66 /min* (Impeller)
Head	Ø 41 mm up to 10 m* (Rotor) Ø 41 mm up to 15 m* (Impeller)
Viscosity	up to 600 mPas*
Density	up to 1,5*
* All physical data are real measured maximum values. * Test medium water 20 °C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5%
