Name: ELECTRIC JP-380
Price: 1 KRW
Availability: InStock

알림

ELECTRIC JP-380

1원

전기 모터 드럼펌프, 825W

112 L/min, 3.7 Bar

장바구니

문의하기

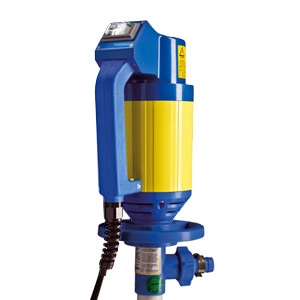

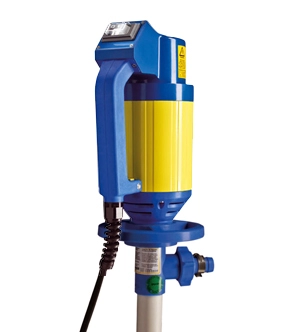

Motor JP-380 without pump tube
Version	Voltage	Order-No.
without LVR, with SC	230 V 1~, 50 Hz, 825 W	1380 2304
with LVR + SC	230 V 1~, 50 Hz, 825 W	1380 2305
with LVR	230 V 1~, 50 Hz, 825 W	1380 2306
without LVR, SC	230 V 1~, 50 Hz, 825 W	1380 2307
LVR : Low voltage release SC : Speed control

Operating data JP-380
Flow rate (with hose and oval gear meter)	Ø 41 mm up to 112 l/min* (Rotor) Ø 41 mm up to 83 l/min* (Impeller)
Head	Ø 41 mm up to 16 m* (Rotor) Ø 41 mm up to 37 m* (Impeller)
Viscosity	up to 600 mPas*
Density	up to 1,9*
* All physical data are real measured maximum values. * Test medium water 20 °C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5%

Motor JP-380 without pump tube
Version	Voltage	Order-No.
without LVR, with SC	230 V 1~, 50 Hz, 825 W	1380 2304
with LVR + SC	230 V 1~, 50 Hz, 825 W	1380 2305
with LVR	230 V 1~, 50 Hz, 825 W	1380 2306
without LVR, SC	230 V 1~, 50 Hz, 825 W	1380 2307
LVR : Low voltage release SC : Speed control

Operating data JP-380
Flow rate (with hose and oval gear meter)	Ø 41 mm up to 112 l/min* (Rotor) Ø 41 mm up to 83 l/min* (Impeller)
Head	Ø 41 mm up to 16 m* (Rotor) Ø 41 mm up to 37 m* (Impeller)
Viscosity	up to 600 mPas*
Density	up to 1,9*
* All physical data are real measured maximum values. * Test medium water 20 °C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5%
