* 에어다이아프램 펌프 토출라인에 맥동을 감소시켜줍니다.
■ EQUAFLUX Adventages
■ 이탈리아에서 설계 및 제작 되었습니다. |
■ 방폭 기능 (ATEX certification zone 1-2, IECEx certification) |
■ 높은 내화학성과 긴 수명을 가진 다이아프램이 장착되었습니다. |
■ 공급에어에 윤활유 공급이 필요하지 않습니다. |
■ 간헐적 흐름을 최소화시켜줍니다. |
■ 펌프 작동 중 진동 최소화에 적합합니다. |
■ 손쉬운 유지 보수 및 부품 교체(경쟁사 대비 적은 부품 수로 인한 유지 보수 금액 절감) |
■ 운용가능 온도 |
- PP / PP+CF from +3°C to +65°C
- PVDF / ECTFE from +3°C to +95°C
- AISI 316 / AISI 316 L / Aluminium from +3°C to 95°C
Available in the following materials:
PP PP + CF PVDF PPS - V AISI 316 L

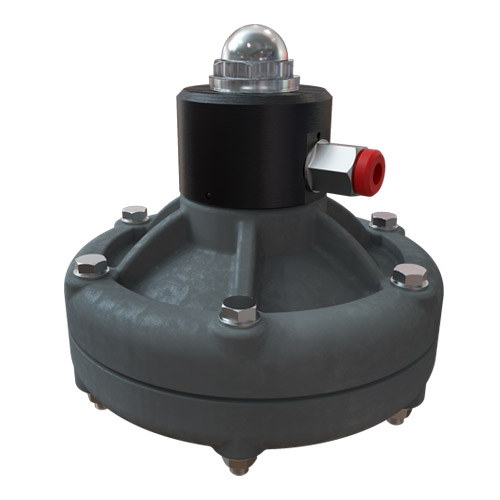

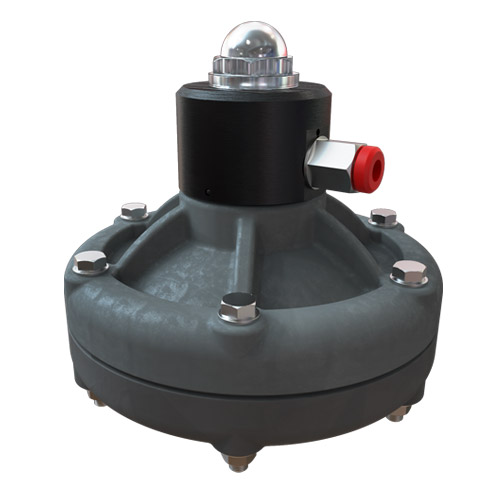

■ Material (half-casing in contact with the fluid): PP
Product fitting | G 3/4″ f |
Air fitting | Ø 6 mm |
Operating pressure | Min 2 Bar – Max 8 Bar |
Application | Midgetbox, Cubic 15, Boxer 7, Boxer 15, Microboxer |
Weight | 0,5 kg |
Operating temperature | da +3°C a +65°C |
Dimension (mm) | 121 x 117 |
■ Material (half-casing in contact with the fluid): PP + CF
Product fitting | G 3/4″ f |
Air fitting | Ø 6 mm |
Operating pressure | Min 2 Bar – Max 8 Bar |
Application | Midgetbox, Cubic 15, Boxer 7, Boxer 15, Microboxer |
Weight | 0,5 kg |
Operating temperature | da +3°C a +65°C |
Dimension (mm) | 121 x 117 |
■ Material (half-casing in contact with the fluid): PVDF
Product fitting | G 3/4″ f |
Air fitting | Ø 6 mm |
Operating pressure | Min 2 Bar – Max 8 Bar |
Application | Cubic 15, Boxer 7, Boxer 15, Microboxer |
Weight | 0,5 kg |
Operating temperature | da +3°C a +95°C |
Dimension (mm) | 121 x 117 |
■ Material (half-casing in contact with the fluid): PPS – V
Product fitting | G 3/4″ f |
Air fitting | Ø 6 mm |
Operating pressure | Min 2 Bar – Max 8 Bar |
Application | Boxer 7, Boxer 15, Microboxer |
Weight | 0,6 kg |
Operating temperature | da +3°C a +95°C |
Dimension (mm) | 121 x 117 |

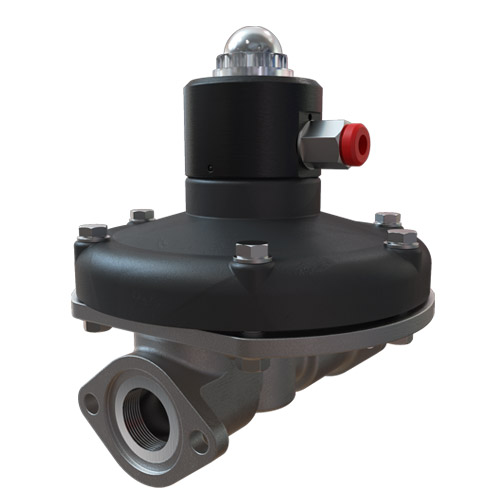

■ Material (half-casing in contact with the fluid): AISI 316 L
Product fitting | G 1/2″ f |
Air fitting | Ø 6 mm |
Operating pressure | Min 2 Bar – Max 8 Bar |
Application | Boxer 7, Boxer 15, Microboxer |
Weight | 1,33 kg |
Operating temperature | da +3°C a +95°C |
Dimension (mm) | 133 x 117 |
Air side half-casing material:
• PP
• PP+CF
• ALLUMINIO
Diaphragm materials:
• NBR
• EPDM
• Hytrel
• Santoprene
• PTFE
Caps materials:
• PP (with glass additive)
• PP conductive (with carbon additive)
• PVDF
• PPS-V
• ECTFE natural
• AISI 316
• Aluminium
