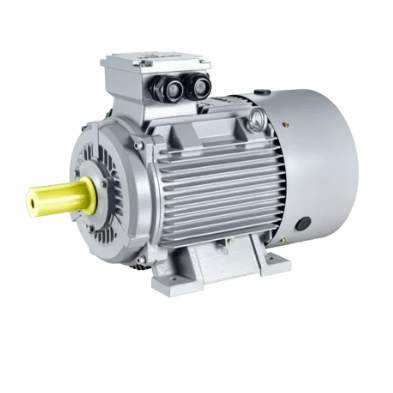

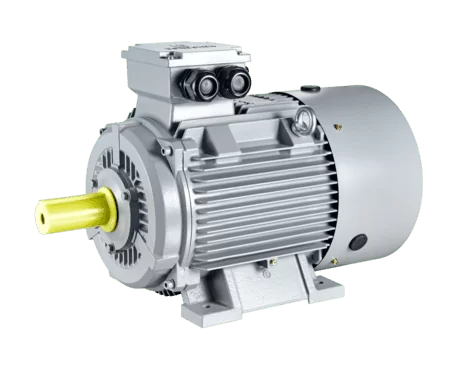

IE1 standard - Y2 series three phase motor with cast iron body
Electric motors are used in a wide range of machinery and equipment with no special requirements
Frame: 80 – 355 ,
Power: 0.75kw-315kW,
Pole: 2 pole, 4 pole, 6pole, 8 pole, 10 pole
Protection: IP 55
Efficiency Class: IE1
Insulation Class: F
Continuous Service: S1
Enclosure: Cast Iron
PTC Thermal Probe: magnitudes 160 (included) to 355 (included)
- water pump
- industrial fan
- Mining machinery， transport machinery
- agricultural machinery , food machinery ect.
Features
Y2 series aluminum three-phase asynchronous motor is a kind of TEFC squirrel cage motor with the national unified design,
it has the characteristice of high efficiency,energysaving,hight starting torque,low noise,low vibration and easy maintenance,
the grade of power and the mounting mesasurement are subject to the IEC standard.
This series motor is commonly used in the machinery without special requirement specially for reducer,air compressor,water pump,oil pump,packing and food machinery and so on.
Ambient temperature: -15 ℃ ≤0≤40 ℃
Altitude: not exceeding 1000 meters
Voltage: 220 / 380V 230 / 440V 380 / 660V 400 / 690V
Rated Frequency: 50HZ 60HZ
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Conntinuous(S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
Cooling type: IC411
| website | catalog | manual | drawing |

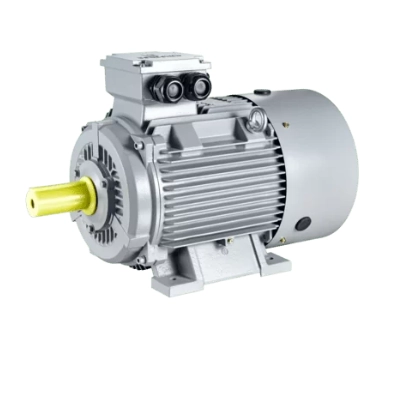

IE1 standard - Y2 series three phase motor with cast iron body
