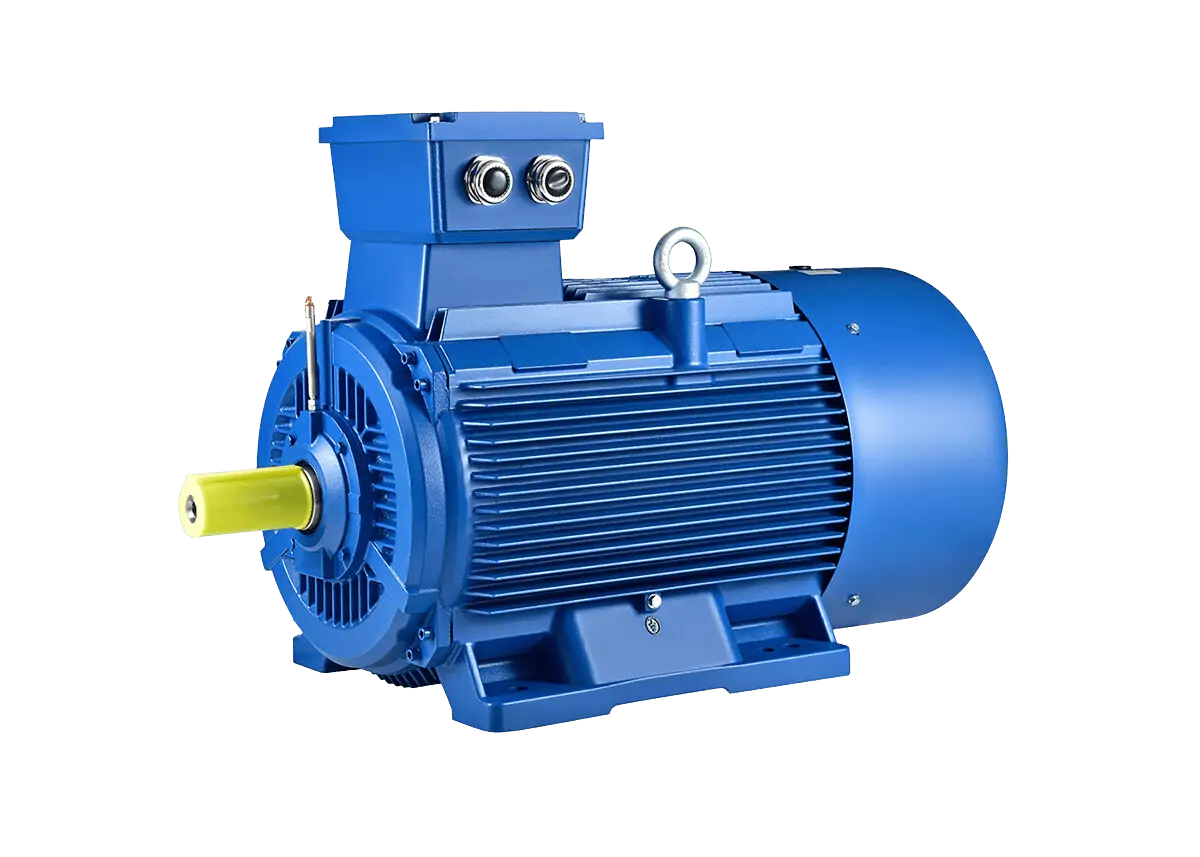

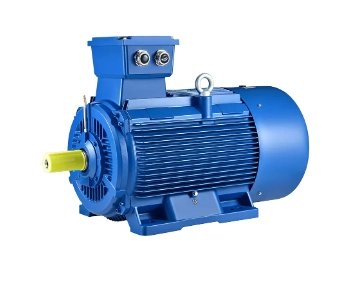

IE2 series high efficiency three phase motor with cast iron body
Electric motors are used in a wide range of machinery and equipment with no special requirements
Frame: 80 – 355 ,Power: 0.75kw-315kW, 2 pole, 4 pole, 6pole, 8 pole, 10 pole
- water pump
- industrial fan
- Mining machinery， transport machinery
- agricultural machinery , food machinery ect.
Features
IE2 Series high-efficiency three-phase asynchronous motor is based on the latest energy efficiency rating of IEC60034-30 standard and IEC60034-2 rotating electrical machines Part 2 "losses and efficiency of rotating electrical test measurement method".
The advanced technologies, process control, and our many years' production experience which can ensure the efficiency reaching into the target level of IE2 standard;
This series motor is noted for their novel design, high efficiency, energy-saving, beautiful modeling, low noise, high efficiency, compact structure, convenient maintenance and so on.
The motor with Class F insulation, temperature rise by the full range of B-class assessment are greatly enhance the safety and reliability.
Mounting dimensions comply with IEC standard, the protection degree is Ip55.
IE2 series motors can be widely used for driving equipment of various machineries, such as: machine tools, blowers, pumps, compressors, Packing machinery, mine machinery, construction machinery.
Ambient temperature: -15 ℃ ≤0≤40 ℃
Altitude: not exceeding 1000 meters
Voltage: 220 / 380V 230 / 440V 380 / 660V 400 / 690V
Rated Frequency: 50HZ 60HZ
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Conntinuous(S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
Cooling type: IC411
