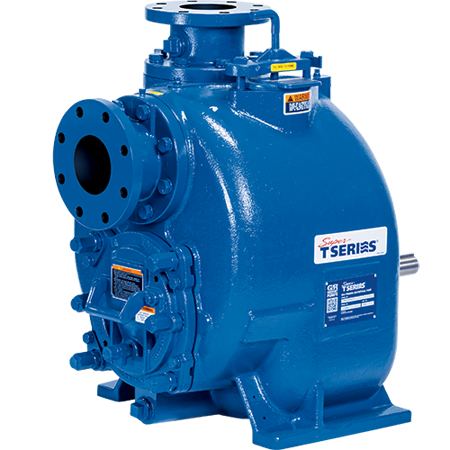

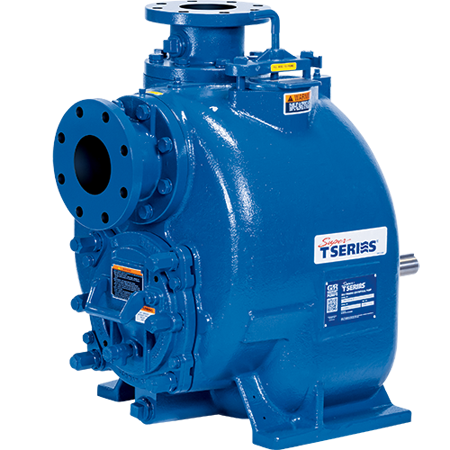

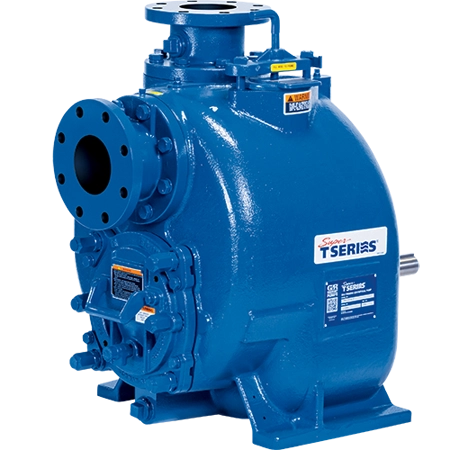

Super T Series®
Designed for economical, trouble-free operation, the superior solids-handling capabilities of the Super T Series® pumps make them ideally suited for a variety of applications, including solids-laden liquids and slurries. In addition, the large volute design allows automatic repriming in a completely open system without needing suction or discharge check valves.
Available in discharge sizes of two, three, four, six, eight, and ten inches, this line of self-priming pumps boasts capacities to 3,400 gallons per minute (214.5 liters per second) and heads to 148 feet (45 meters). Pumps four inches and larger are engineered to allow up to three-inch diameter spherical solids to pass through any critical area, including the recirculation port.
Super T Series pumps are available in several configurations, including a B version for higher head applications and close-coupled or engine-driven models. In addition, all Gorman-Rupp Super T Series pumps are backed by a five-year manufacturer's warranty, and Eradicator Plus models come standard with a one-year manufacturer's warranty.
Eradicator Solids Management System
The Eradicator system features an aggressive self-cleaning wearplate incorporating a number of notches and grooves and a patent-pending lacerating tooth that helps break up stringy materials and pass them through the pump without impacting performance or interrupting service. In addition, a special back cover includes a patented lightweight inspection cover that can easily be removed if it is necessary to inspect the impeller. The innovative design dramatically reduces troublesome clogging and expensive downtime.
Eradicator Plus Solid Reduction Technology
The Eradicator Plus was designed for the most extreme-duty applications such as; liquids containing trash bags, wipes, mop heads, hair, industrial by-products, and agricultural wastes. In addition, the Eradicator Plus is ideal when cutting and tearing organic solids entering the pump is required. Featuring an easily removable lightweight inspection cover, extra-thick G-R Hard Iron wearplate, upgraded stainless steel, and load-bearing shaft, the Eradicator Plus models are the most aggressive in the Super T Series product lineup.
FEATURES
External Shimless Adjustment
The external shimless cover plate allows for easy adjustment of the clearance between the impeller and the wearplate. This process eliminates the need to realign belts, couplings or other drive components. In turn, the working height of the seal assembly and impeller back clearance are not disturbed. The unique collar and adjusting screw allow for incremental adjustments of the wearplate clearance with the turn of a hand. Once adjustments have been made, the collar locks in place maintaining the clearance setting even if the cover plate is removed. This design doubles the life of the impeller and wearplate, and keeps the pump operating at maximum efficiency.
Solids Handling
Two-vane, semi-open solids handling impeller handles up to 3" (75 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings. Multi-vane impellers are available in “B” hydraulics models for higher head applications with limited solids.
Exclusive Gorman-Rupp Cartridge Seal
Exclusive double-floating, self-aligning, oil lubricated mechanical cartridge seal with stationary and rotating face of silicon carbide or tungsten titanium carbide is specifically designed for abrasive and/or trash handling service. Seal is available on 3", 4" and 6" (75 mm, 100 mm and 150 mm) pump models. Optional seals are also available.
Removable Cover Plate with "Easy-Grip" Handle
The removable cover plate with "easy-grip" handle and pusher bolt capability provides quick and easy access to the pump interior without disconnecting piping. Clogs can be removed and the pump can be returned to service in minutes. Impeller, seal, wearplate and flap valve can also be accessed through coverlet opening for inspection or service.
Removable Rotating Assembly
Inspection of pump shaft or bearings is easily accomplished without disturbing pump casing or piping by removing rotating assembly. Simply remove four bolts from the back of the pump and the assembly slides out. This allows for quick and easy installation of a spare rotating assembly, resulting in less downtime.
Dual Protection of Bearings
An atmospheric barrier and two lip seals provide protection of the pump bearings. This allows for quick and easy external monitoring of the bearing cavity.
Replaceable Wearplate
Super T Series pumps feature replaceable wearplates which fasten to the cover plate and can easily be removed for inspection or service. No expensive castings to replace.
Specifications
| Size | 2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm) |
| Max Capacity | 3400 GPM (215 lps) |
| Max Head | 130' (40 m) |
| Max Solids | 3" (76 mm) |
| Materials of Construction | Cast Iron, CD4MCu, Ductile Iron, Stainless Steel |
