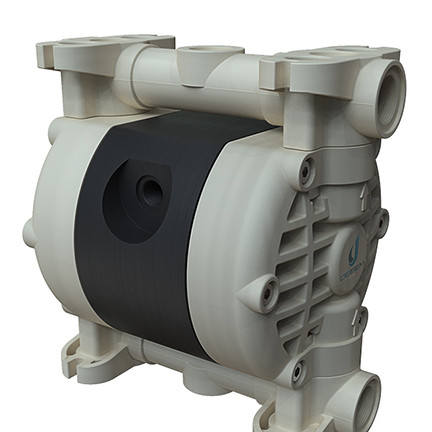

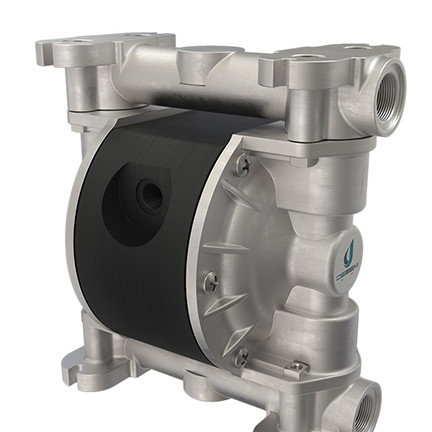

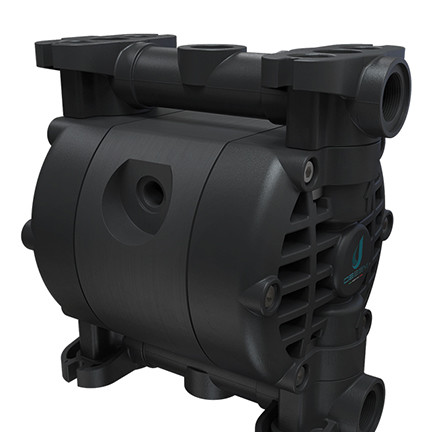

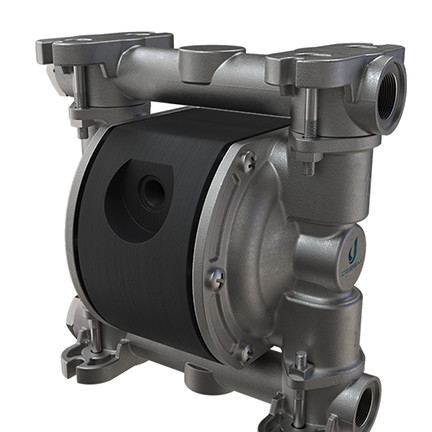

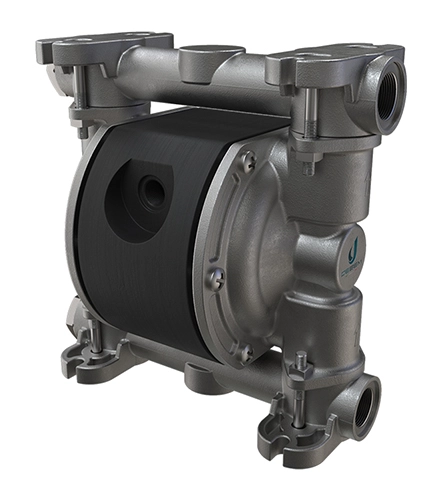

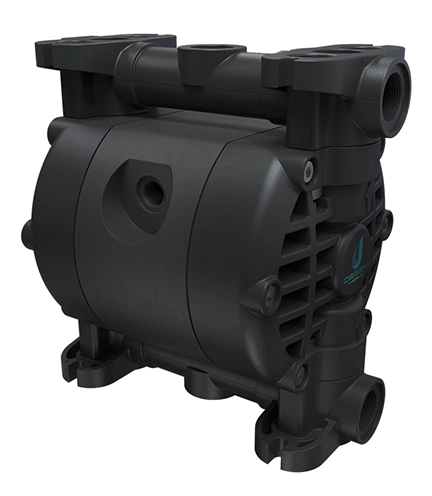

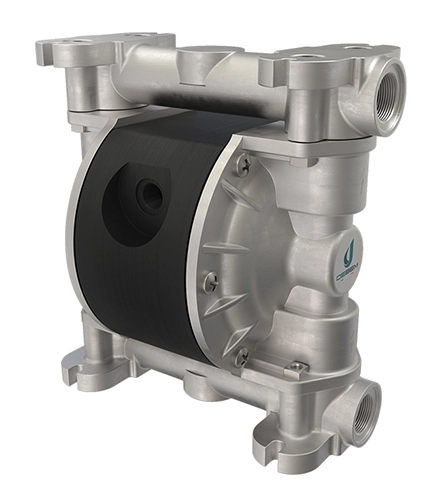

■ BOXER Adventages

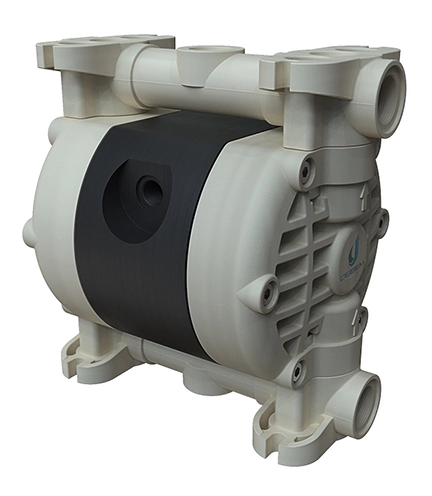

■ 에어구동형 다이아프렘 펌프로써, 각종 케미칼 및 여러 응용분야의 액체 이송에 적합합니다. |
■ 방폭 기능 (ATEX certification zone 1-2, IECEx certification) |
■ 공회전이 가능합니다. |
■ 자흡이 가능합니다. |
■ 공급에어에 윤활유 공급이 필요하지 않습니다. |
■ 슬러지가 포함된 유체 및 점도가 있는 유체 이송 가능. |
■ 특허 받은 멈춤 방지 에어벨브 시스템 |
■ 손쉬운 유지 보수 및 부품 교체(경쟁사 대비 적은 부품 수로 인한 유지 보수 금액 절감) |
■ 성능과 비용의 탁월한 비율 |
■ 운용가능 온도 |
- PP / PP+CF from +3°C to +65°C
- PVDF / ECTFE from +3°C to +95°C
- AISI 316 / AISI 316 L / Aluminium from +3°C to 95°C

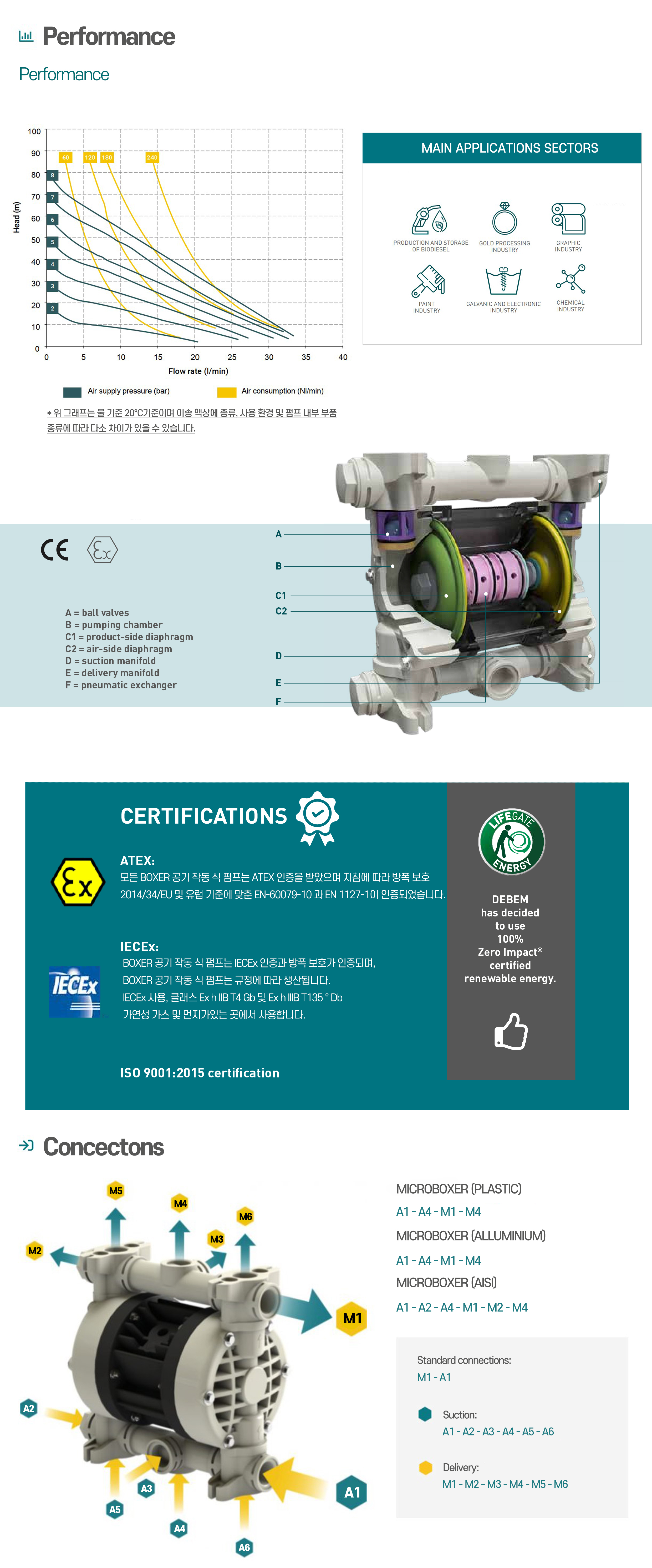

■ Technical Specifications
Head / Flow rate guaranteed in compliance with ISO 9906
Suction/delivery connections | G 1/2″ f - Clamp o NPT available only on request |
Air fitting | G 1/4″ f |
Max flow rate * | 35 l/min |
Max supply air pressure | 8 bar |
Max head * | 80 m |
Max negative suction head – dry-running ** | 4 m |
Max negative suction head – pump primed | 9,5 m |
Diameter Max suspended solids | 2 mm |
Noise level ** | 65 dB |
Volume per stroke
| 30 cc |
Construction materials (casing and manifolds) available on request:
• POMc
• UHMWPE
• Duplex/S.Duplex
Available in the following materials : PP PVDF ALU AISI
Construction materials (casing and manifolds) and net weight:
Version | Weight | Min | Max |
PP (with glass additive) | 1,6 kg | 3° C | 65° C |
PP conductive (with carbon additive) | 1,6 kg | 3° C | 65° C |
PVDF (with carbon additive) | 1,98 kg | 3° C | 95° C |
ALU | 2,1 kg | 3° C | 95° C |
AISI 316 L | 3,75 kg | 3° C | 95° C |
Maximum dimensions | Plastic | Stainless Steel | Aluminium |
Height | 168 mm | 171 mm | 172 mm |
Width | 165 mm | 177 mm | 164 mm |
Depth | 120 mm | 120 mm | 120 mm |
