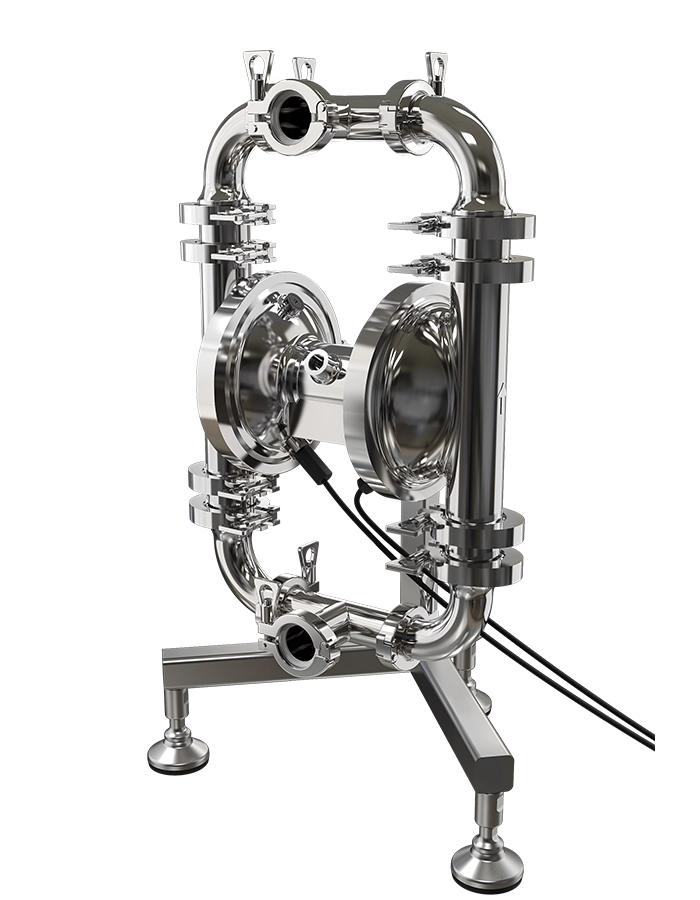

SANIBOXER 01

Name: SANIBOXER 01
Price: 1 KRW
Availability: InStock

1원

Connections: 1"" Clamp

Flow rate: 100 L/min

장바구니

문의하기

Connection :	1" clamp
Air connection :	G 3/8” female
Flow rate max :	100 l/min (물기준)
Max. head :	80 m
Max. air supply pressure :	8bar
Max. passing solid :	4 mm
Construction net weight :	SS316 16Kg 95°C
Max suction from negative head - pump on:	9.5 m
Max suction from negative head - dry running:	2.5 m

Version	Weight	Min	Max
SUS 316L	16 kg	3° C	95° C

Connection :	1" clamp
Air connection :	G 3/8” female
Flow rate max :	100 l/min (물기준)
Max. head :	80 m
Max. air supply pressure :	8bar
Max. passing solid :	4 mm
Construction net weight :	SS316 16Kg 95°C
Max suction from negative head - pump on:	9.5 m
Max suction from negative head - dry running:	2.5 m

Version	Weight	Min	Max
SUS 316L	16 kg	3° C	95° C
