Sanitary and Food Pumps
Air-operated double diaphragm pumps
DEBEM의 생산 범위에는 제약 및 식품을 위해 특별히 설계된 두가지 제품이 있습니다.
• SANIBOXER
3A certified pumps, made with mechanically polished AISI 316 L
• FOODBOXER
Stainless steel pumps made with electro-polished AISI 316 and PTFE FDA.
공기 구동식 다이아프램 펌프는 제약, 식품, 화장품, 음료산업 등에서 사용하기에 적합합니다.

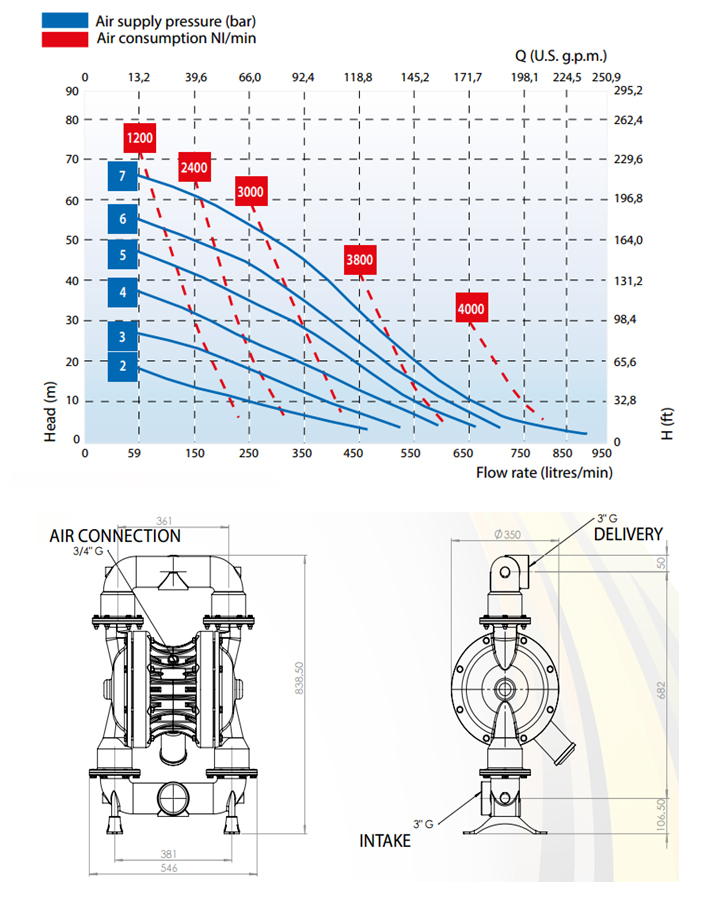

FOODBOXER 503 – FB503
Connection : | 3” clamp |
Air connection : | G 3/4” female |
Max. self-priming : | 5 m |
Flow rate max : | 900 l/min (물기준) |
Max. head : | 70 m |
Max. air supply pressure : | 7bar |
Max. passing solid : | 10 mm |
Construction net weight : | SS316 71 Kg 95°C |
 |
