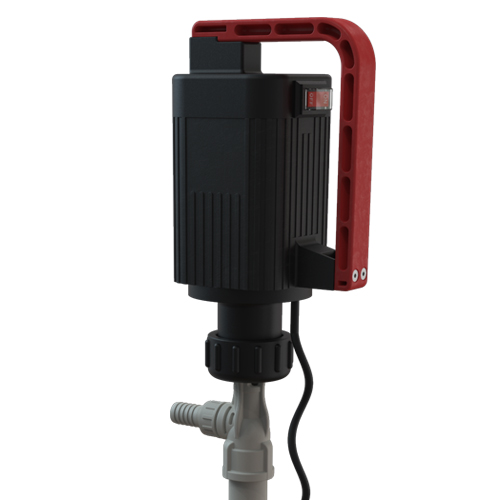

■ DRUM PUMP Adventages
■ 이탈리아에서 설계 및 제작되었습니다. |
■ 부식성이 높은 액상 이송에 적합합니다. |
■ Mechanical Seals을 사용하지 않습니다. |
■ 연속적 사용에 적합하도록 설계되었습니다. |
■ 최대 점도 900 cps까지 이며, 최대 유량 90 L/min 입니다. |
■ Technical Specifications
Viscosity | Fino a 900 cps |
Max flow rate | 90 L/min |
Polypropylene Casing:
Dip tube | Ø 42 mm |
Hose holder | Ø 25 mm |
Operating temperature | da 3° a 65° C |
Total weight in kg | 1,4 for lenght of 900 mm · 1,7 for lenght of 1200 mm |
Material dip tube | Polypropylene |
Material shaft | HASTELLOY or AISI 316 |
Material impeller | ECTFE |
Material suction outlet | Polypropylene |
Material Seal gasket in contact with the fluid – MIM | Viton® |
Lenght mm | 900 o 1200 |
Available in the following materials : PP
Specifiche tecniche motori elettrici:
Power | 800 Watt |
Voltage | 230 V monofase |
Protection rating | IP54 |
Class | F |
Max flow rate | 90 l/min |
Viscosity | 900 cps |
Density | 1,6 g/cm3 |
Weight in kg | 3,8 |
NB: The electric cable is supplied without socket.
ATEX motor available on request – for information contact the sales office.
Accessories:
• Polypropylene or PVDF flow meter
• Polypropylene, PVDF, aluminium, stainless steel dispensers
• T-bolt clamps for spiral hoses
• Reinforced hose in food-grade PVC with metal reinforcement
• Polypropylene or stainless steel dip tube filter
