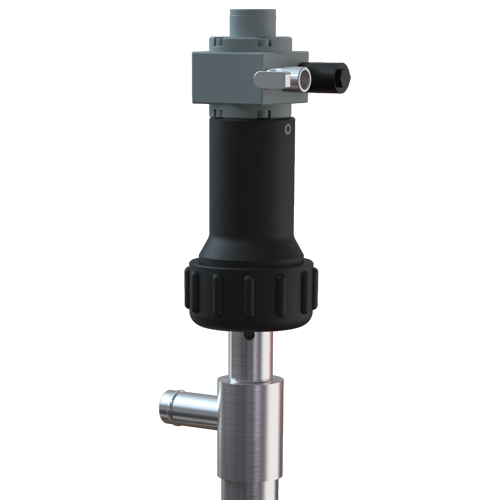

■ DRUM PUMP Adventages
■ 이탈리아에서 설계 및 제작되었습니다. |
■ 부식성이 높은 액상 이송에 적합합니다. |
■ Mechanical Seals을 사용하지 않습니다. |
■ 연속적 사용에 적합하도록 설계되었습니다. |
■ 최대 점도 600 cps까지 이며, 최대 유량 70 L/min 입니다. |
■ Technical Specifications
Viscosity | Up to 600 cps |
Max flow rate | 70 L/min |
AISI 316 Casing:
Dip tube | Ø 42,5 mm |
Hose holder | Ø 25 mm |
Operating temperature | da 3° a 95° C |
Total weight in kg | 4,3 for lenght of 900 mm · 5,3 for lenght of 1200 mm |
Material dip tube | AISI 316 |
Material shaft | AISI 316 |
Material impeller | ECTFE |
Material suction outlet | ECTFE |
Material Seal gasket in contact with the fluid – MIM | Viton® |
Lenght mm | 900 o 1200 |
Available in the following materials : AISI 316
Specifiche tecniche motori elettrici:
Power | 0,42 HP(300 Watt) |
Max flow rate | 70 l/min |
Viscosity | 600 cps |
Density | 1,2 g/cm3 |
Weight in kg | 1,1 |
ATEX motor available on request – for information contact the sales office.
Accessories:
• Polypropylene or PVDF flow meter
• Polypropylene, PVDF, aluminium, stainless steel dispensers
• T-bolt clamps for spiral hoses
• Reinforced hose in food-grade PVC with metal reinforcement
• Polypropylene or stainless steel dip tube filter
