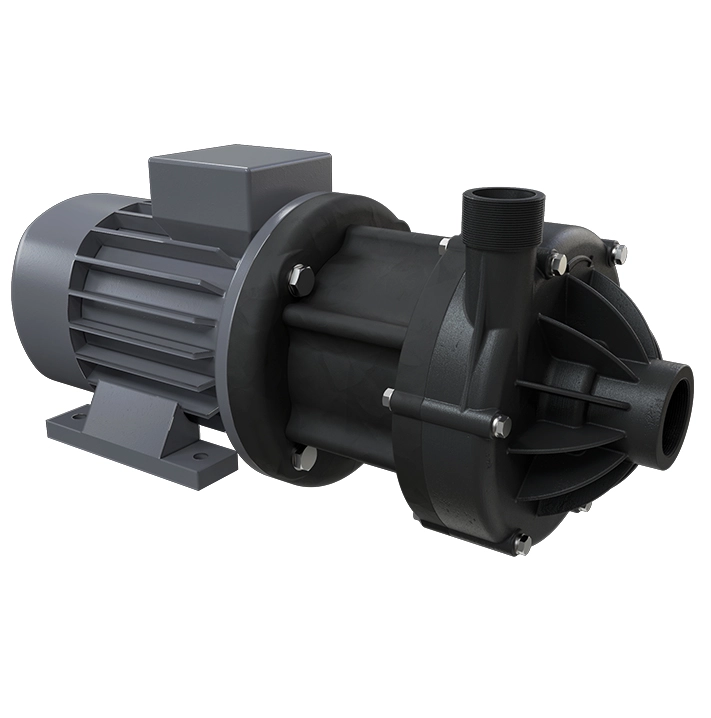

■ CENTRIFUGAL PUMP Adventages
■ 이탈리아에서 설계 및 제작되었습니다. |
■ 내화학성이 높은 PP와 PVDF로 제작되었습니다. |
■ 손쉬운 유지 보수가 가능합니다. |
■ 연속적 사용에 적합하도록 설계되었습니다. |
■ Technical Specifications
Suction connections | G 1 1/2″f o DN40 - NPT |
Delivery connections | G 1″1/4 m o DN32 - NPT |
Max flow rate * | 23,5 m3/h |
Max rate * | 20 m |
Viscosity * | Up to 150 gps |
Operating temperature and weight:
Version | Temperature | Weight(pump without motor) |
PP | da +3°C a +65°C | 4,5Kg |
PVDF | da +3°C a +95°C | 5,2Kg |
Standard electric motors:
• Kw 1,5 – HP 2 • Box B3+B5 RPM 2900 • Three-phase 230/400 V • 50/60 HZ • 2 Pole IE1 Protection rating IP55 • Ambient temperature -30°C + 45°C
• Kw 2,2 – HP 3 • Box B3+B5 RPM 2900 • Three-phase 230/400 V • 50/60 HZ • 2 Pole IE1 Protection rating IP55 • Ambient temperature -30°C + 45°C
• Kw 1,5 – HP 2 • Box B3+B5 RPM 2900 • Single-phase • Ambient temperature -30°C + 45°C
• Kw 2,2 – HP 3 • Box B3+B5 RPM 2900 • Single-phase • Ambient temperature -30°C + 45°C
Electric motors available on request:
• SINGLE-PHASE
• ATEX
• NEMA 145 TC (only pump available, with American flange, for coupling with NEMA motor – the motor is not available in our standard)
Available in the following materials : PP PVDF
IMPELLER: | Motor 1,5 Kw (2HP) | Motor 2,2 Kw (3 HP) |
Ø 123 mm (Standard) | up to 1,1 g/cm3 | up to 1,8 g/cm3 |
Ø 108 mm | up to 1,6 g/cm3 | up to 2 g/cm3 |
Ø 90 mm | up to 2 g/cm3 | up to 2 g/cm3 |
Seal o-ring materials:
• EPDM
• VITON®
FLANGE KIT (DIN standard – ANSI available on request):
• KITFLANG-DM15P (PP pump)
• KITFLANG-DM15F (PVDF pump)
