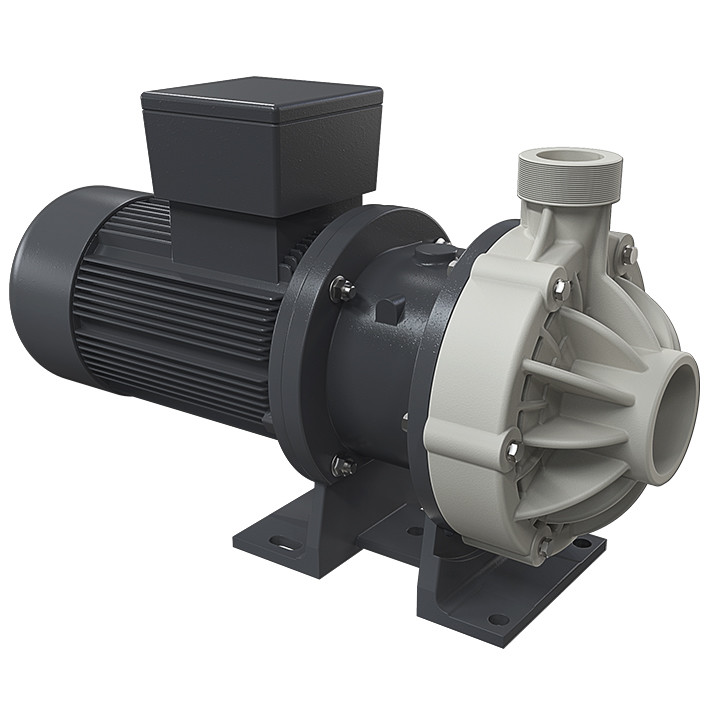

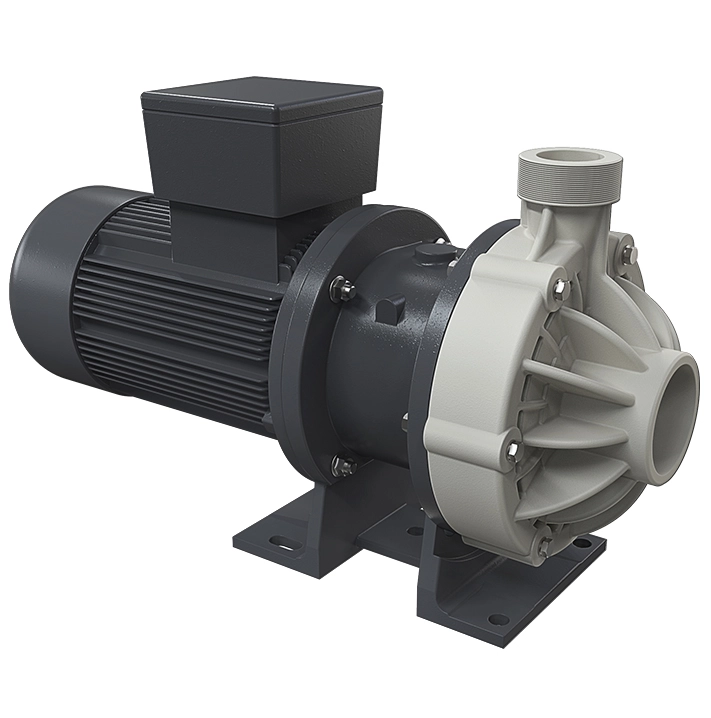

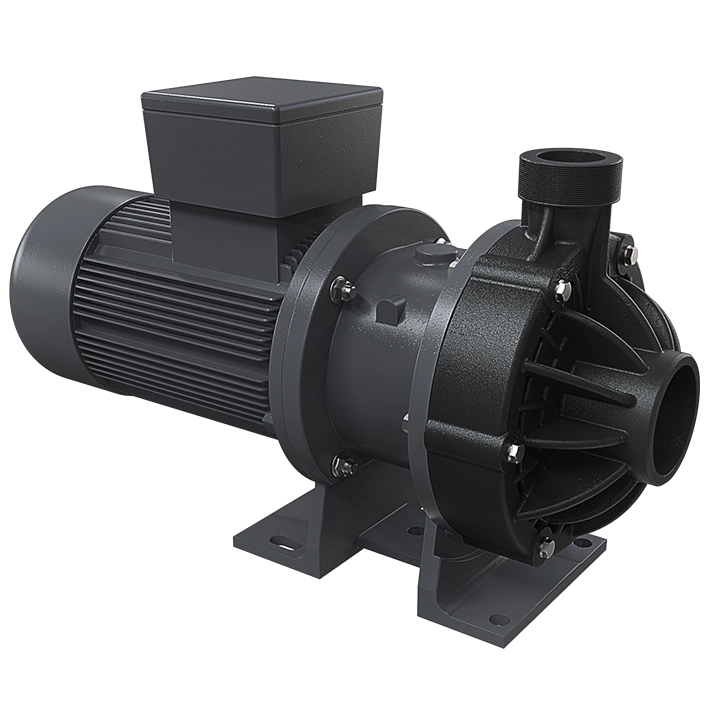

■ CENTRIFUGAL PUMP Adventages
■ 이탈리아에서 설계 및 제작되었습니다. |
■ 내화학성이 높은 PP와 PVDF로 제작되었습니다. |
■ 손쉬운 유지 보수가 가능합니다. |
■ 연속적 사용에 적합하도록 설계되었습니다. |
■ Technical Specifications
Suction connections | G 3″f o DN80 - NPT su richiesta |
Delivery connections | G 2″1/2 m o DN65 - NPT su richiesta |
Max flow rate * | 65 m3/h |
Max rate * | 29 m |
Viscosity * | Up to 150 gps |
Operating temperature:
Version | Temperature | Weight(pump without motor) |
PP | from +3°C to +65°C | 33 Kg |
PVDF | from +3°C to +95°C | 34,5 Kg |
Standard electric motors:
• Kw 4 – HP 5,5 • Box B3+B5 RPM 2900 • Threephase 230/400 V • 50/60 HZ • ATEX
• Kw 5,5 – HP 7,5 • Box B3+B5 RPM 2900 • Threephase 400/690 V • 50/60 HZ • ATEX
• Kw 7,5 – HP 10 • Box B3+B5 RPM 2900 • Threephase 400/690 V • 50/60 HZ • ATEX
Electric motors available on request:
• ATEX
Available in the following materials : PP PVDF
IMPELLER: |
Ø 145 mm (Standard) |
Ø 139 mm |
Ø 129 mm |
Ø 119 mm |
Seal o-ring materials:
• EPDM
• VITON®
Standard Package:
• Protective polyurethane foam wrapping in a wooden crate
FLANGE KIT (DIN standard – ANSI available on request):
• Flange suction 3″ (DN 80) m
• Flange delivery 2″1/2 (DN 65) f
