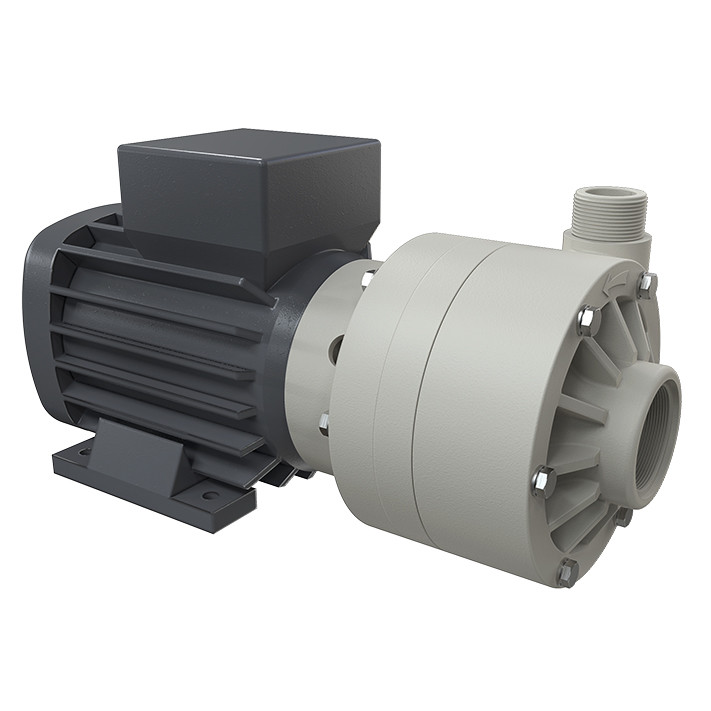

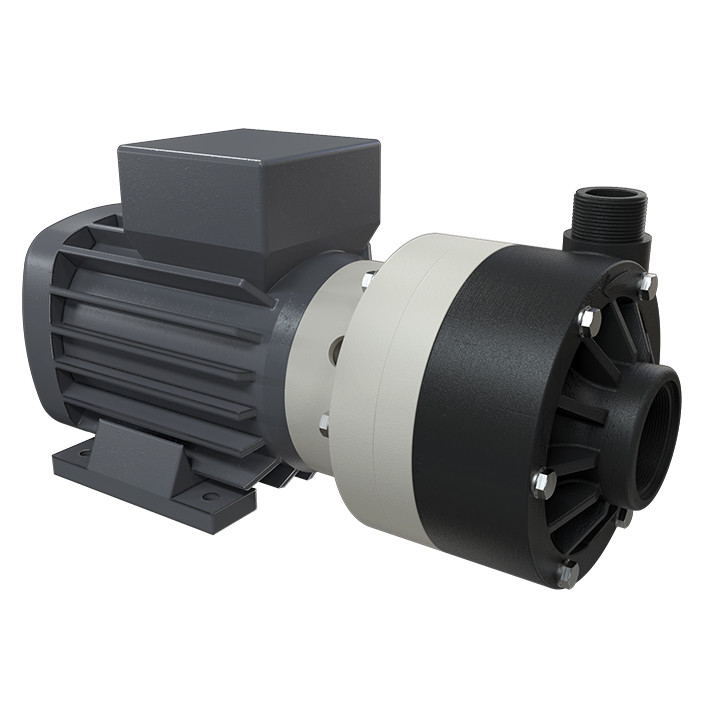

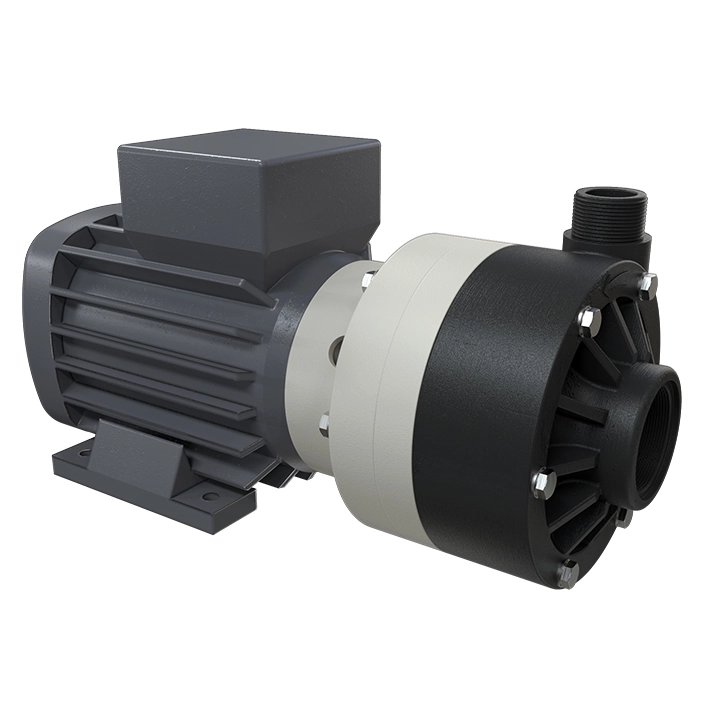

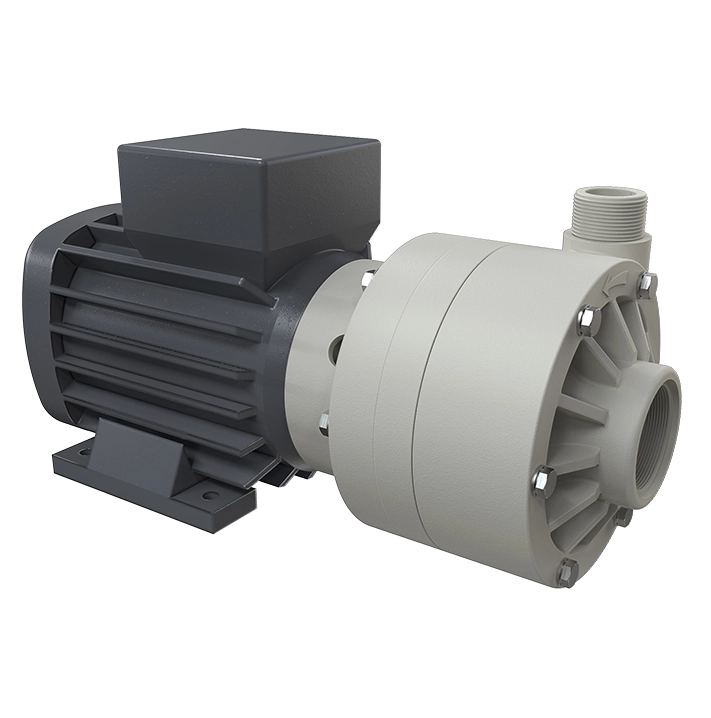

■ CENTRIFUGAL PUMP Adventages
■ 이탈리아에서 설계 및 제작되었습니다. |
■ 내화학성이 높은 PP와 PVDF로 제작되었습니다. |
■ 손쉬운 유지 보수가 가능합니다. |
■ 연속적 사용에 적합하도록 설계되었습니다. |
■ Technical Specifications
Suction connections | G 1″1/2 f o DN40 |
Delivery connections | G 1″m o DN25 |
Max flow rate * | 6 m3/h |
Max rate * | 7,5 m |
Viscosity * | Up to 500 cps |
Standard open impeller | Ø 85 mm H 9 mm (special versions are available on request for the fluid pumped) |
Passing solids | Ø max 5 mm |
Construction materials (casing and manifolds), net weight and temperature:
Version | Weight | Min | Max |
PP (with glass additive) | 1,7 kg | 3° C | 65° C |
PP conductive (with carbon additive) | 2,2 kg | 3° C | 65° C |
Standard electric motors:
• Kw 0,37 – HP 0,5
• Box B3+B14
• RPM 2900
• Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
• THREEPHASE 230/400 V – 50/60 Hz – 2 pole – Efficiency class IE1 – Protection rating IP55 – Ambient temperature -30°C + 45°C
Available in the following materials : PP PDVF
Electric motors available on request:
• SINGLEPHASE
• ATEX
Seal o-ring materials:
• EPDM
• VITON®
Accessories:
• FLANGE KIT (DIN standard – ANSI on request):
– KITFLANGMB080P (PP pump)
– KITFLANGMB080F (PVDF pump)
• PP or PVDF basket strainers
Aviable Seal:
• Bellows mechanical seal (new generation with “Self-locking” system)
Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE
• Lip seal: VITON or EPDM
