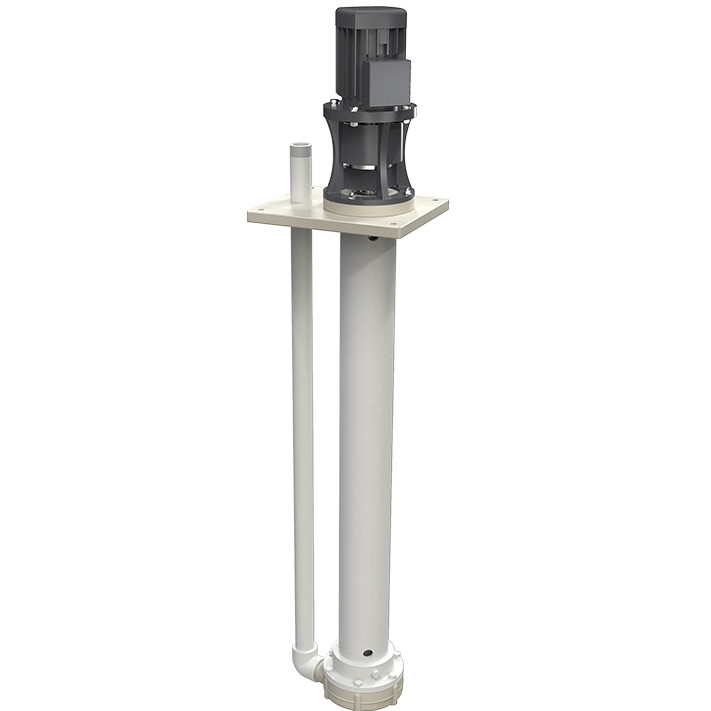

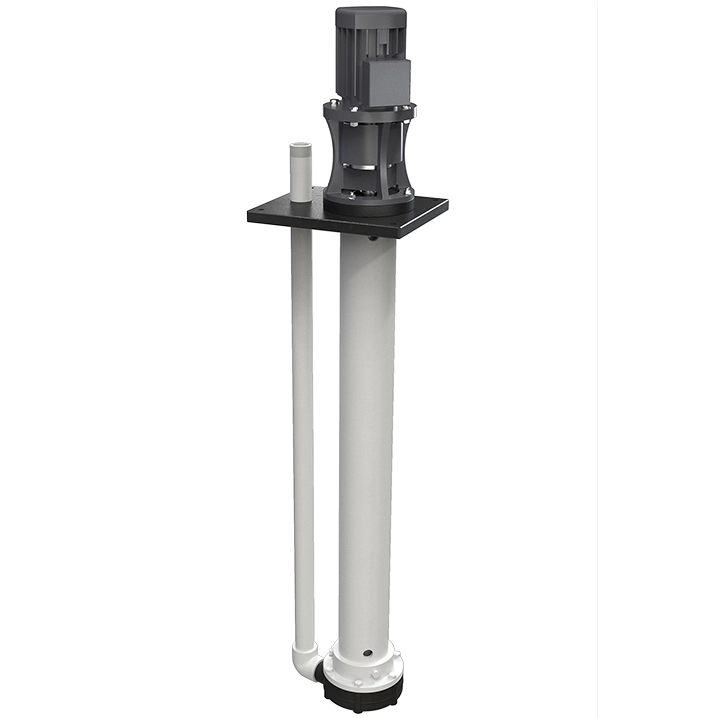

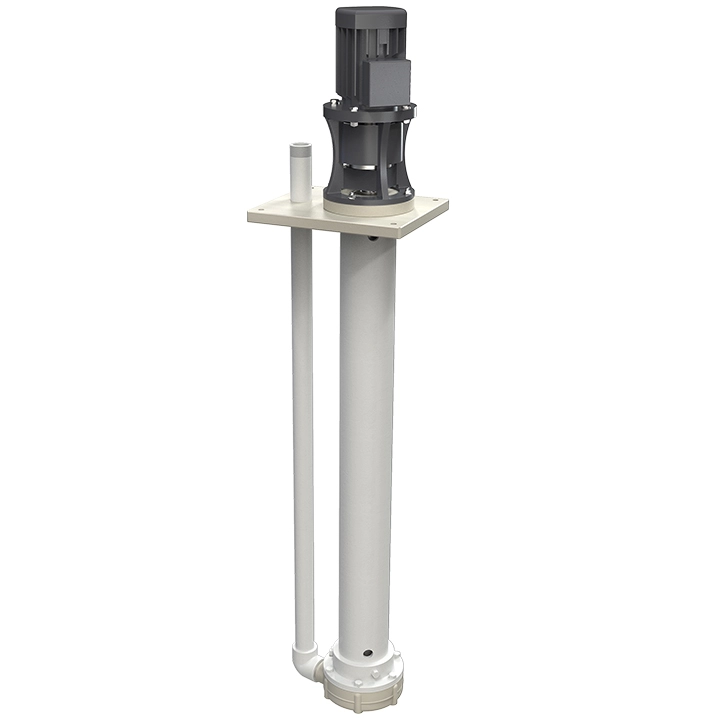

■ CENTRIFUGAL PUMP Adventages
■ 이탈리아에서 설계 및 제작되었습니다. |
■ 내화학성이 높은 PP와 PVDF로 제작되었습니다. |
■ 손쉬운 유지 보수가 가능합니다. |
■ 연속적 사용에 적합하도록 설계되었습니다. |
■ Technical Specifications
Suction connections | G 2″ m o DN 50 |
Delivery connections | G 1-1/2” m o DN 40 |
Max flow rate * | 20 m3/h |
Max rate * | 15 m |
Viscosity * | up to 500 cps |
Standard open impeller | Ø 120 mm H 8 mm (special versions are available on request for the fluid pumped) |
Passing solids | Ø max 6 mm |
■ Available column length:
Available column length (mm) | PP pump weight * | PVDF pump weight * |
500 | 15 kg | 16 kg |
800 | 19 kg | 20 kg |
1000 | 22 kg | 23 kg |
1250 | 24 kg | 25 kg |
1400** | - | - |
* The weights refer to the pump without the motor
** Special version
■ Operating temperature:
Version | Min | Max |
PP | 3° C | 65° C |
PVDF | 3° C | 95° C |
Available in the following materials : PP PVDF
Standard electric motor:
• Kw 1,1 – HP 1,5
• Box B5
• RPM 2900
• Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
• THREEPHASE 230/400 V · 50/60 Hz · 2 pole · Efficiency class IE1 · Protection rating IP55 · Ambient temperature -30°C + 45°C
Electric motors avilable on request:
• SINGLEPHASE
• ATEX
Seal o-ring materials:
• EPDM
• VITON®
Customisable fixing plate only at the design stage
Accessories:
• FLANGE KIT (DIN standard – ANSI available on request):
– KITFLANGIM110P (PP pump)
– KITFLANGIM110F (PVDF pump)
• Pump protection filter* in PP or in PVDF
* The filter is sold separately
