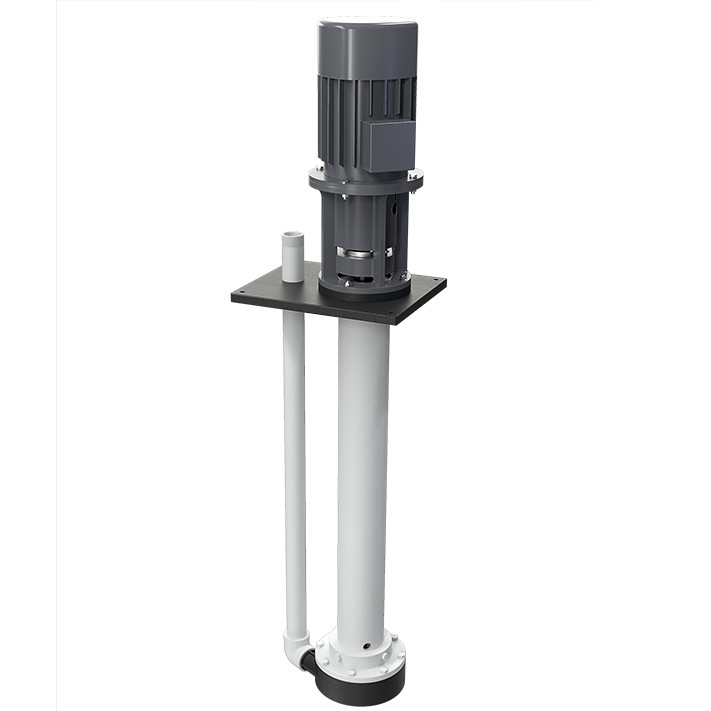

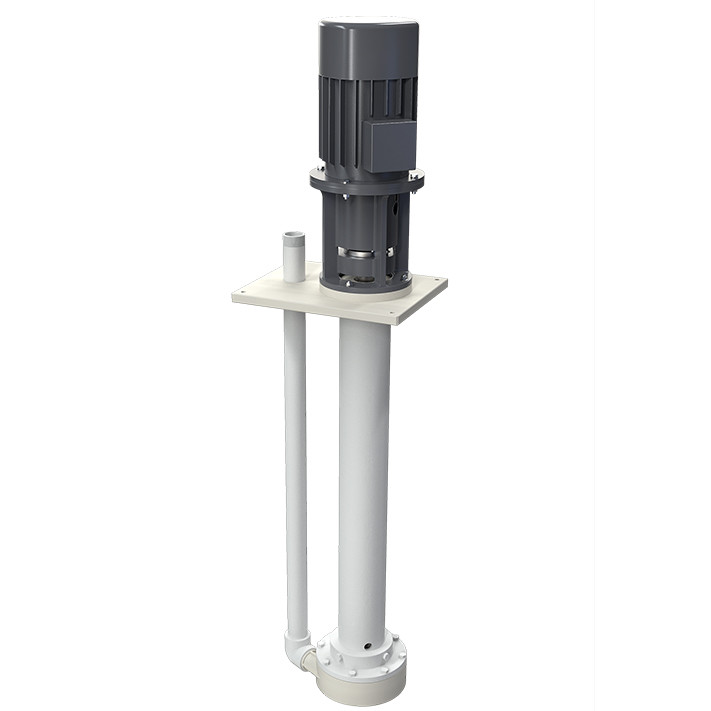

■ CENTRIFUGAL PUMP Adventages
■ 이탈리아에서 설계 및 제작되었습니다. |
■ 내화학성이 높은 PP와 PVDF로 제작되었습니다. |
■ 손쉬운 유지 보수가 가능합니다. |
■ 연속적 사용에 적합하도록 설계되었습니다. |
■ Technical Specifications
Suction connections | G 2-1/2″ m o DN 65 |
Delivery connections | G 2” m o DN 50 |
Max flow rate * | 55 m3/h |
Max rate * | 32 m |
Viscosity * | up to 500 cps |
Standard open impeller | Ø 162 mm H 11 mm – 10° (special versions are available on request for the fluid pumped) |
Passing solids | Ø max 9 mm |
■ Available column length:
Available column length (mm) | PP pump weight * | PVDF pump weight * |
500 | 31 kg | 33 kg |
800 | 34 kg | 36 kg |
1000 | 36 kg | 38 kg |
1250 | 39 kg | 41 kg |
1400** | - | - |
* The weights refer to the pump without the motor
** Special version
■ Operating temperature:
Version | Min | Max |
PP | 3° C | 65° C |
PVDF | 3° C | 95° C |
Available in the following materials : PP PVDF
Standard electric motor:
• Kw 7,5 – HP 10
• Box B5
• RPM 2900
• Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
• THREEPHASE 230/400 V · 50/60 Hz · 2 pole · Efficiency class IE1 · Protection rating IP55 · Ambient temperature -30°C + 45°C
Electric motors avilable on request:
• SINGLEPHASE
• ATEX
Seal o-ring materials:
• EPDM
• VITON®
Customisable fixing plate only at the design stage
Accessories:
• FLANGE KIT (DIN standard – ANSI available on request):
– KITFLANGIM160P (PP pump)
– KITFLANGIM160F (PVDF pump)
• Pump protection filter* in PP or in PVDF
* The filter is sold separately
