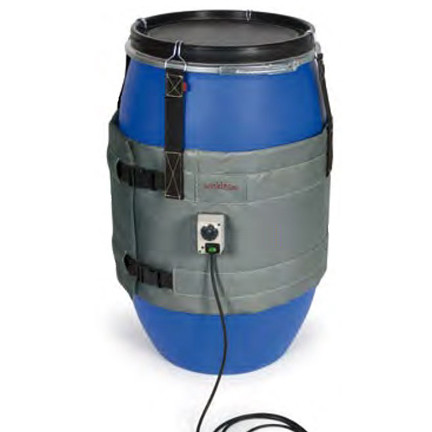

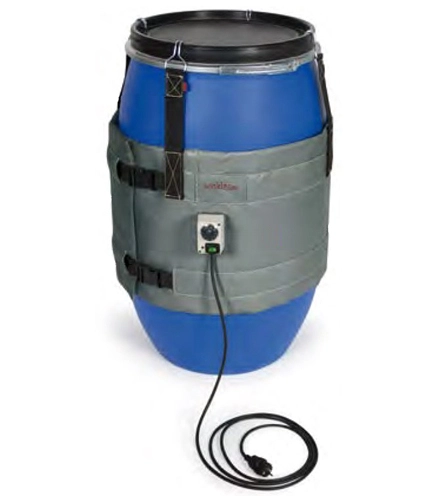

WODL SERIES Drum Warmer for PLASTIC Drums And Canisters |
(SILICONE FREE) tmax = 70 °C |

Applications
· For drums, canisters, and cans of all types, makes, and materials
- even made of plastic - suitable for 30 to 220 litres.
· For tempering up to 70 °C.

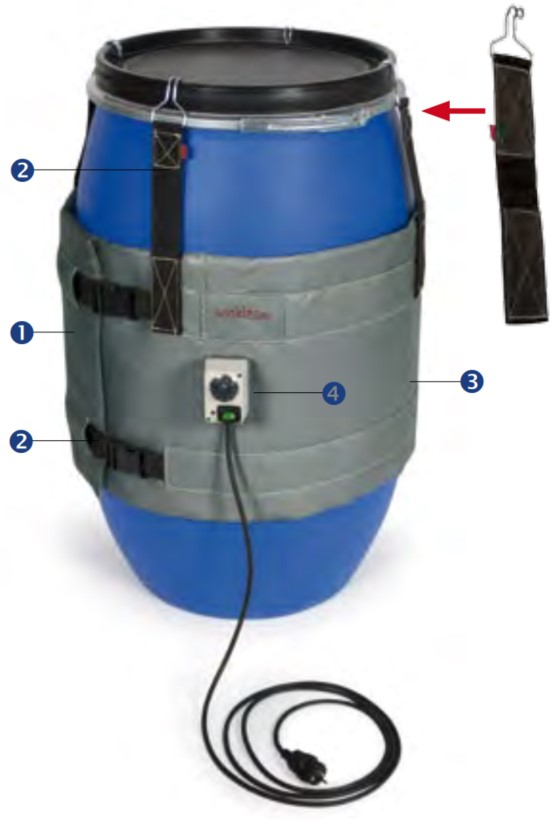

Structure |
1. Outer jacket consisting of PTFE-coated, silicone-free glass fibre fabric
2. Fastening via robust tension straps featuring adjustable snapping clasps
and fastening hooks (enclosed).
3. heating with fluoropolymer-insulated heating conductor with protective conductor braiding.
4. temperature regulation with capillary tube safety thermostat 0 - 70 °C
(made in Germany) with On/Off switch, 2 control lamps
and 3.0 m connecting cable with plug.
safety function: if the measuring system is accidentally destroyed
(drop in capillary pressure), the thermostat switches off permanently.
power rating 230 VAC (±10%); IP54 protective standard; protective class 1
(other voltages on request)
Techical data |

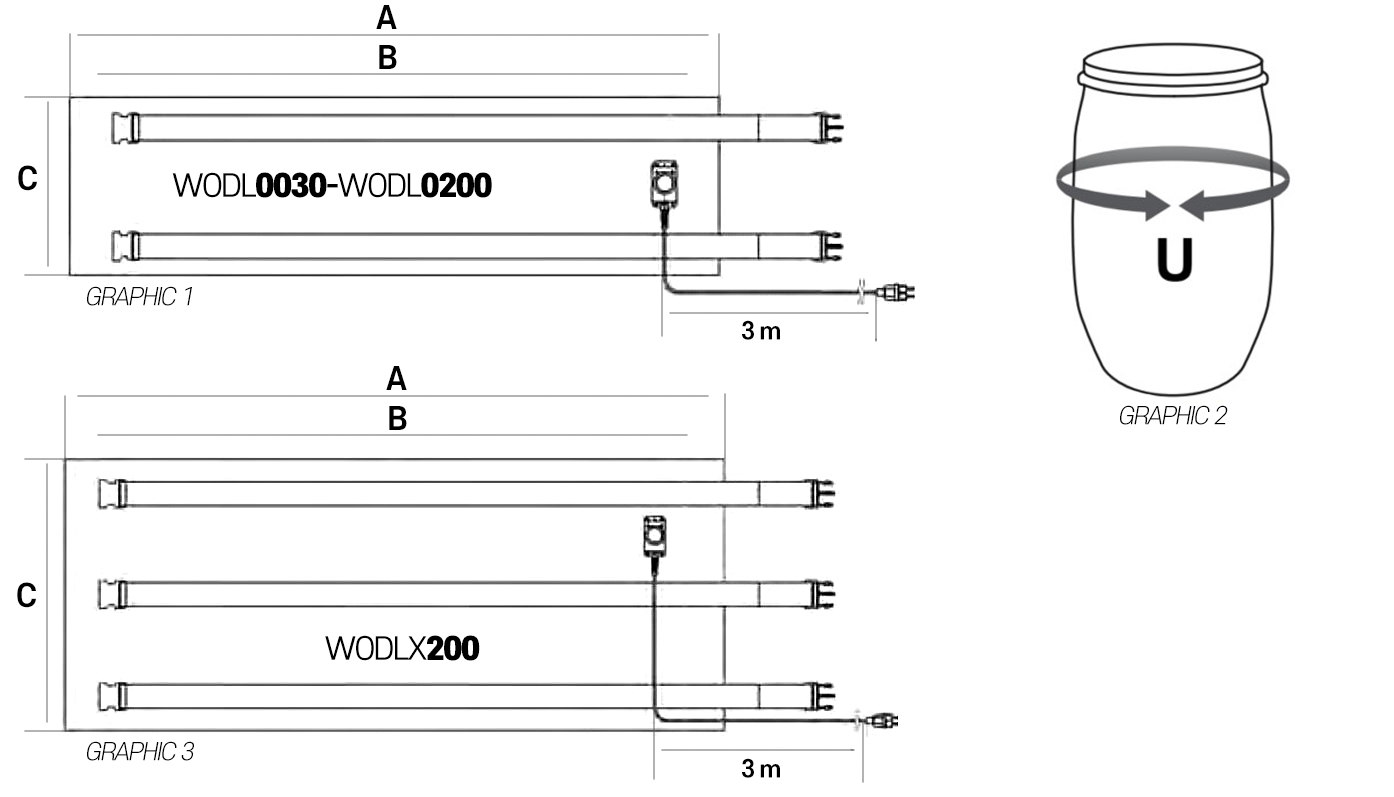

| Drum Warmer for | ||||
30 I Canisters | 60 I Canisters | 120 I Drum | 200-220 I Drum Non-Cylindrical(bossed) | 200-220 I Drum Cylindrical | |
A total length | 1,150 mm | 1,350 mm | 1,700 mm | 2,100 mm | 2,100 mm |
B heated length | 900 mm | 1,100 mm | 1,500 mm | 1,800 mm | 1,800 mm |
C width | 400 mm | 460 mm | 370 mm | 460 mm | 800 mm |
U min. drum circumference
| 870 mm | 1,100 mm | 1,500 mm | 1,800 mm | 1,800 mm |
U max. drum circumference
| 1,170 mm | 1,400 mm | 1,800 mm | 2,100 mm | 2,100 mm |
Power | 150 W | 200 W | 220 W | 330 W | 580 W |
Weight | 2.3 kg | 3.1 kg | 3.2 kg | 4.9 kg | 8.5 kg |
Article No (230 VAC) | WODL0030-230XC071 | WODL0060-230XC071 | WODL0120-230XC071 | WODL0200-230XC071 | WODLX0200-230XC071 |
