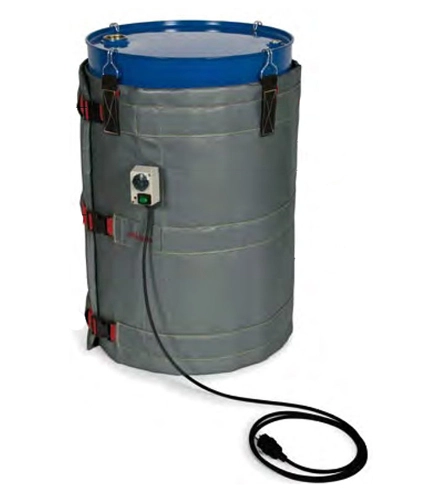

WODH SERIES Drum Heaters for STEEL Drums |
(SILICONE FREE) |
tmax = 200 °C |
Applications
· For steel drums (and steel round cans and hobbocks)of all types and makes suitable for 30 to 220 litres.
· For heating and tempering up to 200 °C.
· Warm-up duration approx. 24 h (200 l water from +15 °C to +80 °C
with a 1,200 W drum heater)
Structure |
1. Outer jacket consisting of PTFE-coated, silicone-free glass fibre fabric
2. Fastening via robust tension straps featuring adjustable snapping clasps
and fastening hooks (enclosed).
3. heating with fluoropolymer-insulated heating conductor with protective conductor braiding.
4. temperature controls: recently developed 50 – 200 °C capillary tube safety thermostat
(made in Germany) featuring on/off switch, 2 control maps
and 3.0 m connection cable with plug.
safety function: If the measuring system is accidentally destroyed
(drop in capillary pressure), the thermostat switches off permanently.
power rating 230 VAC (± 10%); IP54 protective standard; protective class 1
(other voltages on request)
Techical data |
| Drum heater for | |||
30 I Steel drum | 60 I Steel drum | 120 I Steel drum | 200-220 I Steel drum | |
A total length | 1,150 mm | 1,350 mm | 1,700 mm | 2,100 mm |
B heated length | 870 mm | 1,100 mm | 1,400 mm | 1,800 mm |
C width | 400 mm | 460 mm | 370 mm | 800 mm |
U min. drum circumference
| 870 mm | 1,100 mm | 1,500 mm | 1,800 mm |
U max. drum circumference
| 1,170 mm | 1,400 mm | 1,800 mm | 2,100 mm |
Power | 280 W | 450 W | 650 W | 1,200 W |
Weight | 2.3 kg | 3.1 kg | 3.2 kg | 8.5 kg |
Article No (230 VAC) | WODH0030-230XC201 | WODH0060-230XC201 | WODH0120-230XC201 | WODH0200-230XC201 |
