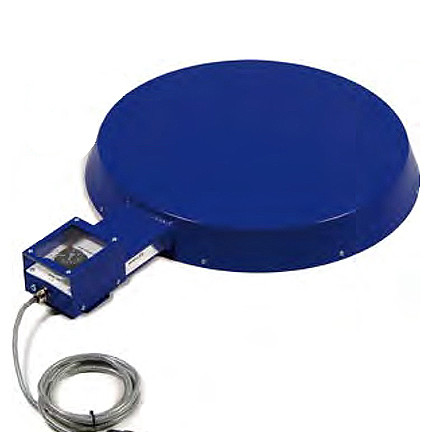

WODB SERIES Base Drum Heaters for STEEL DRUMS |
tmax = 150 °C |
Applications
· For heating and tempering via the base up to 150 °C
· For steel drums (and round steel cans and hobbocks) of all types and makes suitable for 30
to 220litres
· may also be used in addition to the following drum heaters:
WODH with two Pt100 Sensors
Structure |
1.housing consisting of robust 2 mm thick steel sheeting.
Temperature-resistant coating. Insulation keeps the floor from heating.
2.heating with integrated silicone heating mat;
equal distribution via the base surface.
3.temperature controls via a 20 - 150 °C capillary tube thermostat featuring 2 control lamps
and 2.0 m enhanced connection cable with protective contact plug.
4.power rating 230 VAC (± 10%); IP40 protective standard; protective class 1
Technical date |

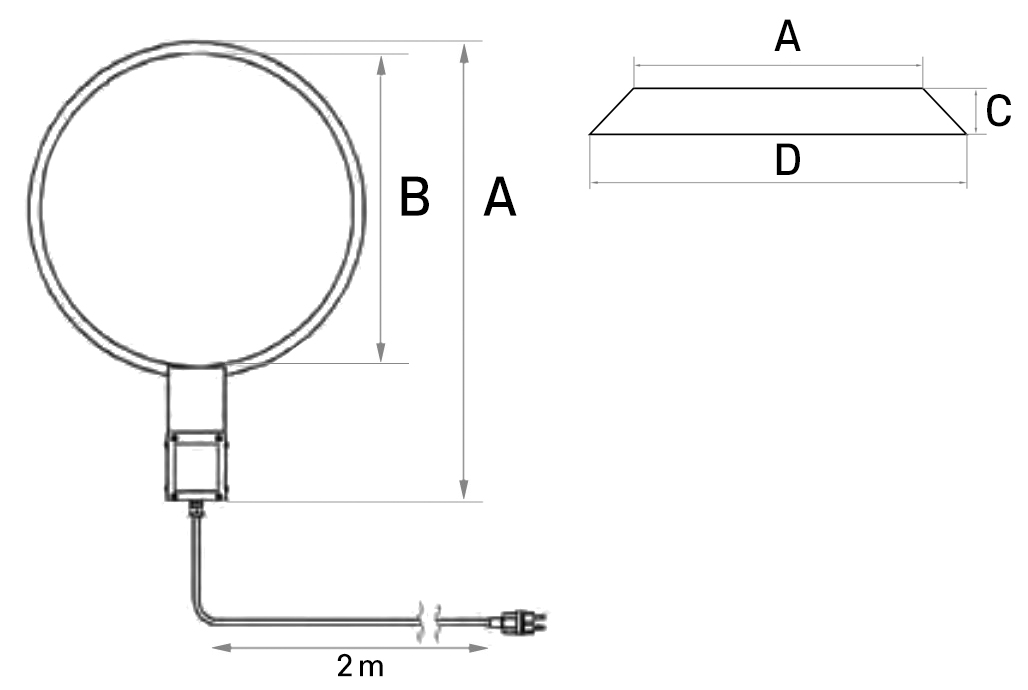

Base drum heater for 200 - 220 l steel drums | |
A panel | 550 mm |
B device | 810 mm |
C hight device | 110 mm |
D plate below | 600 mm |
Power | 900 W |
Weight | 14.0 kg |
Article no (230 VaC) | WODBH200-230XC150 |

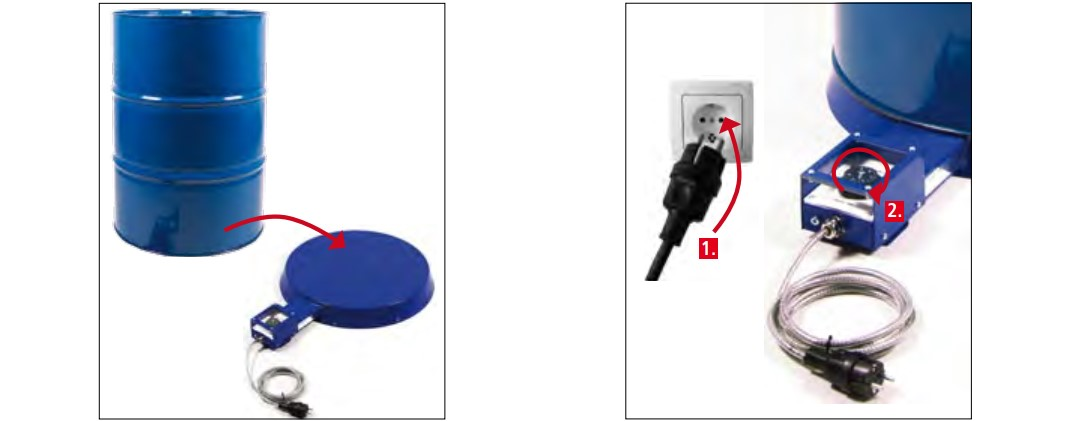

Operation |
| website | catalog | manual | drawing |

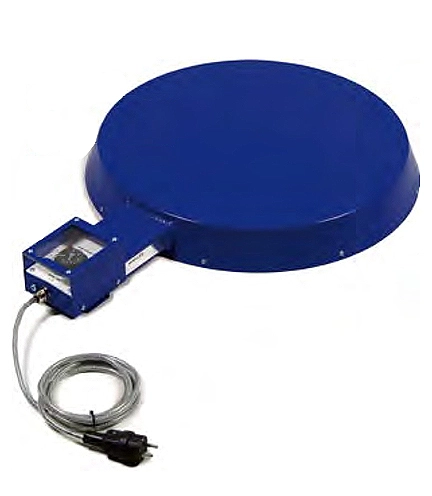

WODB SERIES Base Drum Heaters for STEEL DRUMS |
