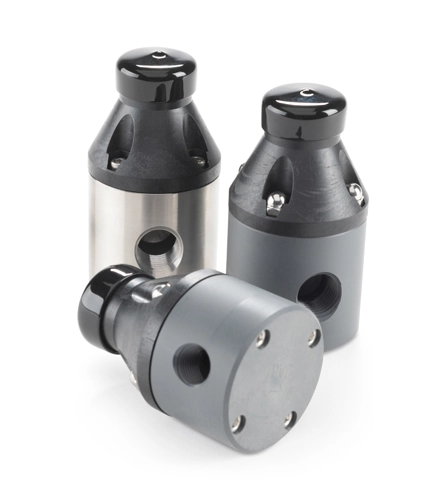

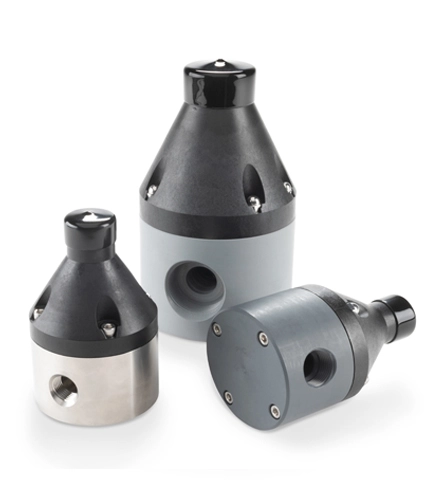

Back Pressure Valves
Help stabilize the downstream pressure and deliver consistent flow |
Griffco Back Pressure Valve는 Diaphragm 방식으로 Anti-Siphon 역할을 할 뿐 아니라 Chemical 공급 펌프에 일정한 압력을 주어 높은 정확성과 공급 시스템의 성능을 향상 시킬 수 있도록 도와줍니다.
Griffco사에서는 다양한 Option의 밸브를 제공합니다.
Valve Features |
• Anti-siphon function
• Solid, robust, machined construction
• Flanged, union, threaded and socket connection options
• Molded Noryl top with integral hardware locking
• 316L SS metal valve and top options
• Molded PTFE/EPDM diaphragm
• Adjustable up to 350 psi (25 bar)
• 4optional pressure ratings (springs)
• Valve sizes from 1/2" to 4" or DN 15 to DN 100
• Tamper-resistant adjustment screw
• High-temperature option up to 300˚F (149˚C)
Griffco Benefits |
• High reliability at affordable price [저렴한 가격에 높은 신뢰성이 장점 입니다.]
• Long diaphragm life [긴 수명을 가진 다이아프램이 장착 되었습니다.]
• Wide range of valve materials [다양한 밸브 재질 선택이 가능합니다.]
• Multiple diaphragm material options [다양한 다이아프램 옵션 선택이 가능합니다.]
Model | Size | Maximum Flow | Maximum Flow | Maximum Pressure | |||||
Inch | Metric | GPH | LPH | GPM | LPM | PSI | BAR | ||
M-Series Low Flow | 1/4" | DN 8 | 100 | 378 | 5 | 19 | 350 | 24 | |
3/8" | DN 10 | 200 | 757 | 10 | 37 | 350 | 24 | ||
1/2" | DN 15 | 300 | 1,135 | 15 | 57 | 350 | 24 | ||
Standard Materials | Diaphragm Materials | ||
•Polypropylene | •EPDM/PTFE (standard) | ||
•PVC | •FKM (Viton®) | ||
•CPVC | •CSM (Hypalon®) | ||
•PVDF | •PTFE/FKM | ||
•PTFE | •Kalrez® | ||
•Halar® | |||
•316L SS | Configurations | ||
•Alloy 20 | •180˚ ports (standard) | ||
•Hastelloy® C | •90˚ | ||
•Wall mount | |||
Standard Connections | |||
•Threaded | Options | ||
•Flanged | •Priming port | ||
•Union | •Adjustment knob | ||
•Socket | •Metal tops | ||
•Metal adjustment screw | |||
Spring Ranges | •Material certifications | ||
•10 to 150 psi (1 to 10 bar) standard | |||
•0 to 50 psi (0.0 to 3.5 bar) | |||
•10 to 250 psi (1 to 17 bar) | |||
