Calibration Columns
Griffco PVC Calibration Cylinders and Borosilicate Glass Columns are designed to enhance the performance of a chemical feed system by providing a verification of the flow rate of the chemical feed pump. Griffco offers a wide range of calibration column sizes and material options that work in many different applications.
End Cap Materials |
| Connections |
• Polypropylene |
| • Threaded - Standard |
• PVC |
| • Socket |
• CPVC |
| • Socket Flanged |
• PVDF |
| • Flanged (with ball valve) |
• PTFE |
| • Union |
• Halar® |
|
|
• 316L SS |
| Options |
• Alloy 20 |
| • Custom labels |
• Hastelloy® C |
| • Material certifications |
|
| • Calibration column stand |
Standard Connections |
| • Wall mount |
• Dust cover |
|
|
• Sealed |
|
|
• EZ-Clean |
|
|
Options for PVC Tops: | ||
- Sealed with vent
| - EZ-Clean
| - Dust Cap
|

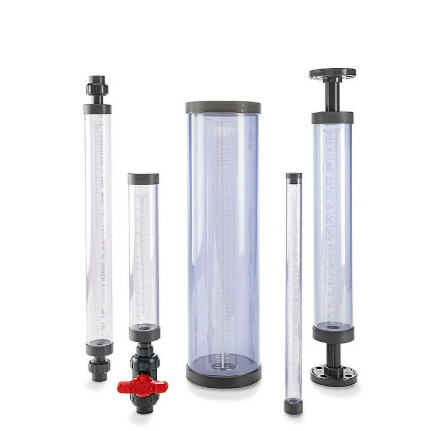

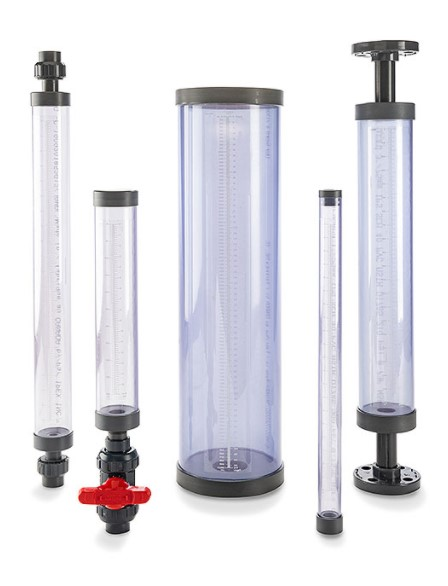

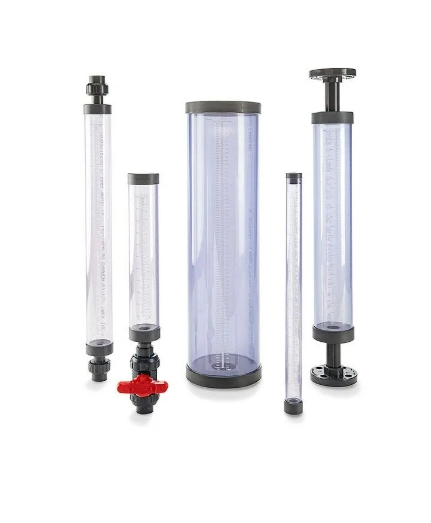

PVC Calibration Cylinders Features |
• Sizes from 100mL to 40,000mL
• Clear, easy-view tube
• High-contrast graduation markings
• Direct GPH and mL readout
• Sealed top with overflow connection
• Optional EZ-Clean model
• Optional open top with dust cap
Griffco Benefits |
• High reliability with numerous options that ensure precise performance
[정확한 성능과 다양한 옵션으로 높은 신뢰성을 가진 정량펌프 유량계 입니다.]
• Clear, easy-view tube [명확하고 보기쉬운 유량계 입니다.]
• Robust construction [견고한 구조를 가졌습니다.]

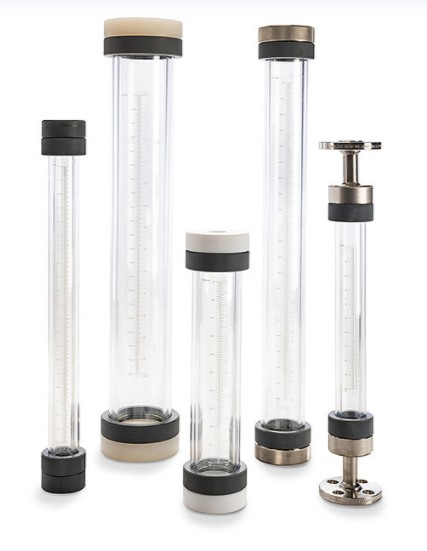

Glass Calibration Cylinders Features |
• Sizes from 30mL to 20,000mL
• Borosilicate glass tube
• High-contrast graduation markings
• US, Metric & GPH Scales
• Seven (7) end cap materials
• Easy disassembly for cleaning
• Protective outer shield (except 10K and 20K models)
• Sealed top with overflow connection
Griffco Benefits |
• High reliability with numerous options that ensure precise performance [정확한 성능과 다양한 옵션으로 높은 신뢰성을 가진 정량펌프 유량계 입니다.]
• Clear, easy-view tube [명확하고 보기쉬운 유량계 입니다.]
• Robust construction [견고한 구조를 가졌습니다.]
